9 Inch Hay Grapple Hook
Colour: Original / Black/ Yellow
Materials: Chromium Molybdenum Alloy
Production processes: Forging/Lost-Wax
Heat Treatment: Normalizing, Annealing, Quenching, Tempering
Surface Finish: Shot Blasting, Polishing, Baking Varnish
Certificates: ISO9001-2005
Transport Package: Wooden Case
Delivery Time: 10-15 Days
| Description | |
|---|---|
| Part No | 9 in Hay Hooks |
| Hay Grapple | 9″ Hook |
| Bolt | 3/8″ U-bolt |
| Nuts | 3/8″ |
| Weigth | 2.31 lb 1.05kg |
| Total thickness(H) | 9″ [228.6 mm] |
| Total Length(L) | 9″ [228.6 mm] |
| Width | 1.96″ [50 mm] |
| Type | Hooks |
| Colour | Original / Black/ Yellow |
| Tensile Strength(MPa) | ≥1250 |
| Yield Strength(MPa) | ≥1000 |
| Impact (J) | ≥50 |
| Hardness (HB) | 330-380 |
| Materials | Chromium Moly Alloy |
| Production Processes | Forging/Lost-Wax |
| Certificates | IS09001-2005 |
| Heat Treatment | Normalizing |
Truecasteng castings is a provider of casting parts solutions. From casting parts to tractor parts , we specialize in delivering innovative and high-quality products tailored to meet the diverse needs of our clients.
At Truecasteng, our commitment to excellence extends to our manufacturing processes. To this end, a great deal of attention has been paid to all aspects, starting from the design to the selection of raw materials and production processes.

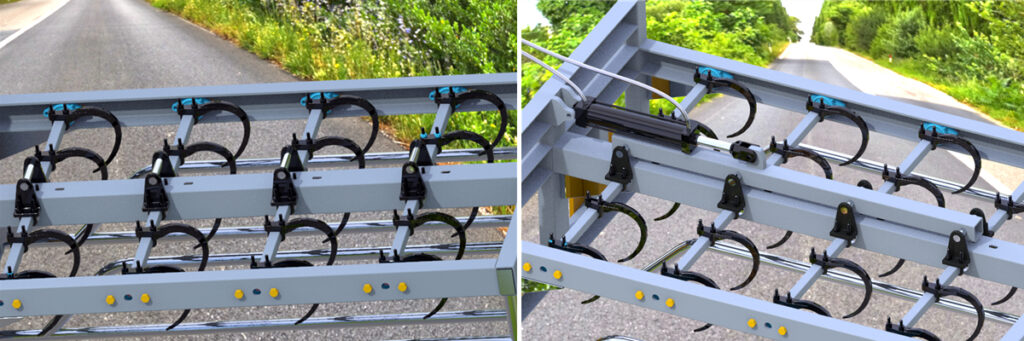

The bale Grabber hooks is mounted onto a loader to move groups of bales. It has hooks arranged, two per bale, to securely hold and move small square bales of hay and straw. This is where the magic of the system happens. The grabber is built from heavy-duty materials to last a lifetime.
Cast steel bale hooks once the group is tight, a single hydraulic cylinder rotates all the hooks simultaneously into the top of the bales to pick up the group. These durable hooks allow for 2 hooks per bale to ensure the bundle is secure while transporting bundles.

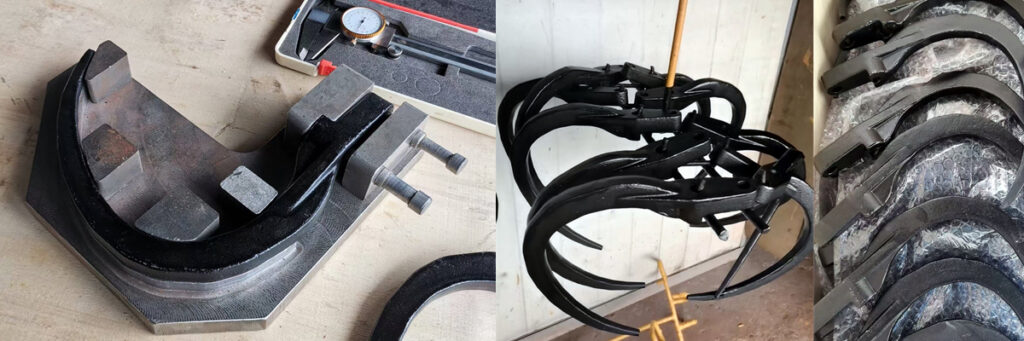

These products are inspected internally at Truecasteng for their dimensioning and material properties, among other things. If so desired, destructive, non-destructive or microstructural analysis can also be performed. In addition the components are delivered to the customer for evaluation. The customer can test the product for functionality, dimensions, strength, appearance and various other important parameters. Based on the results, it is determined whether the product is ready to be produced in series or if additional technical adaptations need to be implemented. High product quality is safeguarded by means of this intensive evaluation phase, as is a stable production process and a high degree of delivery reliability.
Partner with industry-leading precision casting experts to bring your vision to life. We specialize in delivering custom, high-quality casting solutions. With years of experience, cutting-edge technology, and an unwavering commitment to excellence, we ensure every component exceeds your expectations.
