V19 TYL Bucket teeth and Adapter 5854-V19
Colour: Original / Black/ Yellow
Materials: Chromium Molybdenum Alloy
Production processes: Lost-Wax /Precoated Silica Sand
Heat Treatment: Normalizing, Annealing, Quenching, Tempering
Surface Finish: Shot Blasting, Polishing, Baking Varnish
Certificates: ISO9001-2005
Transport Package: Wooden Case
Delivery Time: 10-15 Days
Truecasteng castings is a provider of casting parts solutions. From casting Wear Parts to excavator buckets, bucket teeth, and cutting edge blades, we specialize in delivering innovative and high-quality products tailored to meet the diverse needs of our clients.
| Description | |
|---|---|
| Part No | V19 + 5854-V19 |
| Bucket Tooth | V19 TYL |
| Adapter | 5854-V19 |
| Pin/washer | V19 pin |
| Weigth | 2.18kg / 4.8lb |
| Tensile Strength(MPa) | ≥1350 |
| Yield Strength(MPa) | ≥1100 |
| Impact (J) | ≥25 |
| Hardness (HB) | 450-520 |
| Type | Flex Pin |
| Colour | Original / Black/ Yellow |
| Materials | Chromium Moly Alloy |
| Production Processes | Lost-Wax/ Silica Sand |
| Certificates | IS09001-2005 |
| Heat Treatment | Normalizing, Quenching, Tempering |
At Truecasteng, our commitment to excellence extends to our manufacturing processes. To this end, a great deal of attention has been paid to all aspects, starting from the design to the selection of raw materials and production processes.

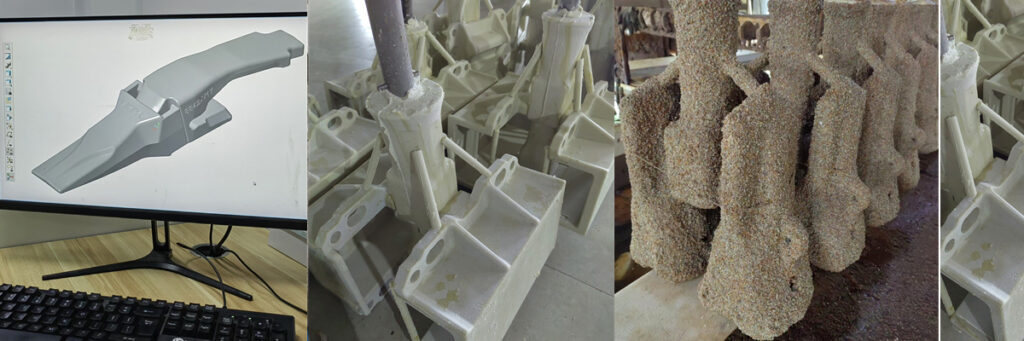

Cast teeth and adapter are used on loaders, scrapers, rippers, and scarifiers. They are formed from a medium-carbon, chromium, nickel. molybdenum steel offering high strength and toughness with deep-hardening properties. They have excellent resistance to wear and abrasion. The manufacturing process begins with the pattern which is basically an exact duplicate of the tooth to be cast but slightly over sized to compensate for steel contraction. The mold is made from this pattern.
To get the desired steel alloy, melt and heat to casting temperature in a large furnace. After this, the steel is poured in using counter-gravity. After being cast, trees must be cooled on a cooling belt (with nitrogen). The ceramic shells are broken with an utterly automatic knock-off hammer to release the trees from their containers and mostly eliminate the ceramic.

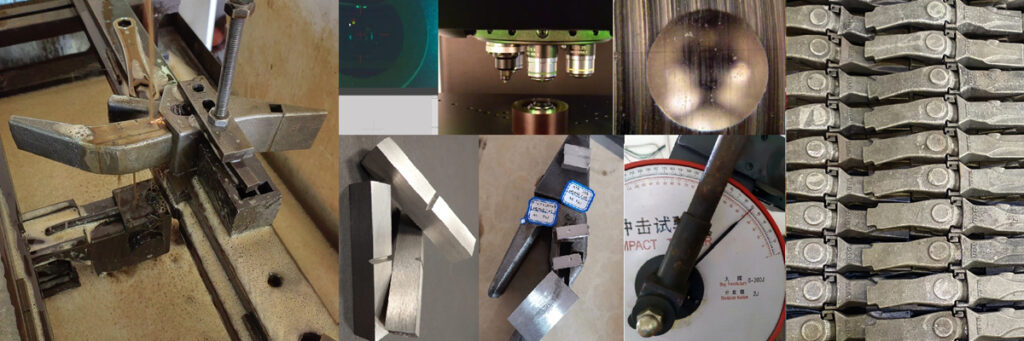

These products are inspected internally at Truecasteng for their dimensioning and material properties, among other things. If so desired, destructive, non-destructive or microstructural analysis can also be performed. In addition the components are delivered to the customer for evaluation. The customer can test the product for functionality, dimensions, strength, appearance and various other important parameters. Based on the results, it is determined whether the product is ready to be produced in series or if additional technical adaptations need to be implemented. High product quality is safeguarded by means of this intensive evaluation phase, as is a stable production process and a high degree of delivery reliability.
Partner with industry-leading precision casting experts to bring your vision to life. We specialize in delivering custom, high-quality casting solutions. With years of experience, cutting-edge technology, and an unwavering commitment to excellence, we ensure every component exceeds your expectations.
