Advanced Casting Manufacturing Capabilities
From a Specialized Workshop to a Global Metallurgy Partner
Through unwavering dedication to quality and innovation, we engineer and deliver high-performance components for critical sectors, including farming, commercial trucking, and heavy industrial machinery.
Our Core Technologies
We deploy a diverse range of casting and metallurgical processes to match the exact mechanical properties and volume requirements of your project.

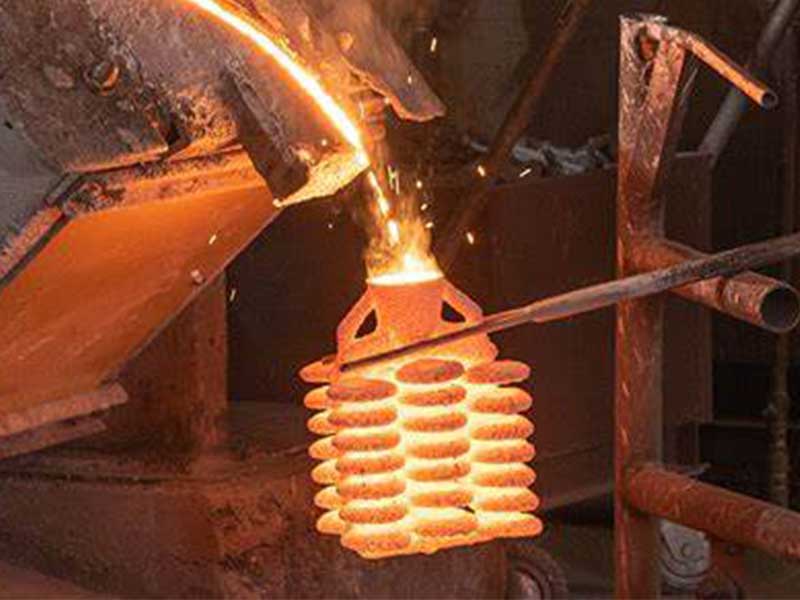

Precision Investment Casting (Lost-Wax)
Our flagship process delivers exceptional dimensional accuracy and superior surface finishes. By utilizing advanced investment casting, we produce near-net-shape components with complex geometries, significantly reducing the need for secondary machining.
Best for: Intricate truck engine components, high-precision automotive parts (such as suspension control arms), and custom industrial valves.

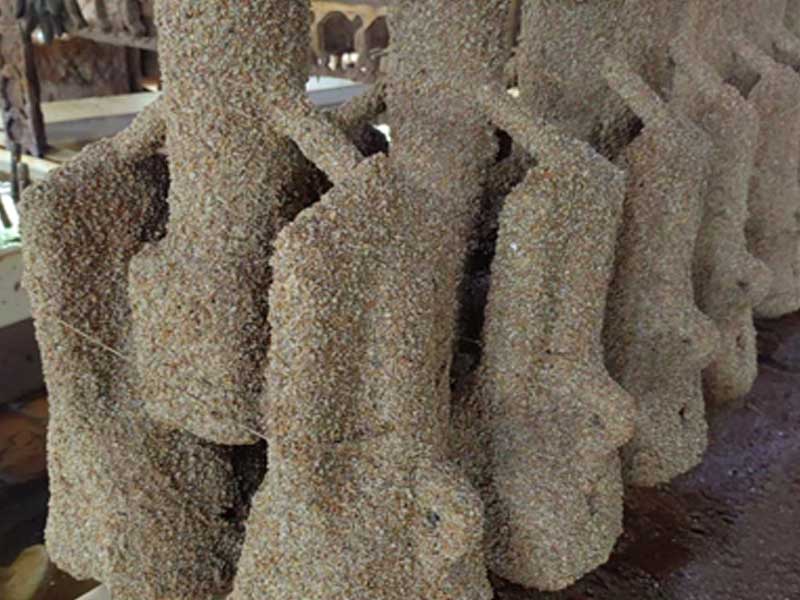

Shell Mold Casting
Engineered for mid-to-high volume production where durability and tight tolerances are critical. This automated process yields a better surface finish than traditional sand casting and is highly efficient for robust, heavy-duty parts.
Best for: Heavy machinery wear parts, excavator bucket teeth, adapters, and gearbox housings.
Bimetallic Composite Casting
To solve the industry’s toughest wear problems, we utilize specialized bimetallic casting. By metallurgically bonding a highly wear-resistant alloy exterior with a tough, ductile steel core, we deliver parts that withstand extreme operational environments.
Best for: High-wear agricultural parts (ground-engaging tools) and mining crusher components.
Integrated CNC Machining & Fabrication
TrueCast is a complete manufacturing partner. Our in-house CNC machining centers guarantee strict tolerances for all cast components. Beyond casting, we provide comprehensive steel structure processing services, including precision laser cutting and OEM/ODM metal fabrication
The TrueCast Precision Workflow
Our quality begins long before the metal is poured. Here is how we transform raw materials into precision-engineered components using our standard investment casting process:
1.Wax Pattern Injection & Assembly:Creating the replica.
High-quality wax is injected into precision aluminum dies to create highly accurate patterns. These are then assembled onto a central wax sprue to form a "tree."
2.Shell Building:Ceramic coating.
The wax tree is repeatedly dipped into a ceramic slurry and coated with fine refractory sand, then cured in a climate-controlled room to form a robust ceramic shell.
3.Dewaxing & Pre-heating:The lost-wax process.
The shell is placed in a high-pressure steam autoclave to rapidly melt and remove the wax. The hollow ceramic shell is then pre-heated to prepare it for molten metal.
4.Pouring & Solidification:Metallurgy in action.
Molten alloy—strictly monitored for chemical composition via spectrometer—is poured into the pre-heated shell and allowed to solidify under controlled conditions.
5.Knockout & Surface Finishing:Revealing the cast.
The ceramic shell is mechanically removed. Individual castings are cut from the sprue, then ground and shot-blasted to achieve a uniform, clean surface finish.
6.CNC Machining & Final QC:Meeting precise tolerances.
Components undergo final CNC machining to meet specific dimensional requirements. Every batch passes through rigorous quality inspections before being packaged for global shipping.
Contact Us Today!
Partner with industry-leading precision casting experts to bring your vision to life. We specialize in delivering custom, high-quality casting solutions. With years of experience, cutting-edge technology, and an unwavering commitment to excellence, we ensure every component exceeds your expectations.
