3G6304 Excavator Bucket Tooth Adapter CAT J300 Style Weld-On Adapter

1. Product Overview

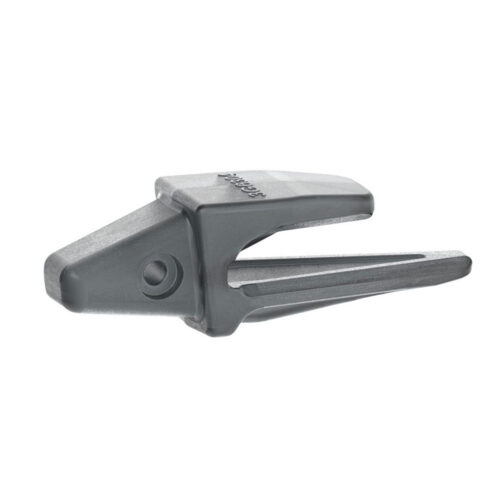

The 3G6304 Excavator Bucket Tooth Adapter is a heavy-duty, weld-on center adapter designed specifically for the Caterpillar (CAT) J300 style side-pin retention system. Engineered as a two-strap (double-strap) adapter, it mounts securely to a 1-1/4″ thick excavator or loader bucket lip, providing the essential mounting base for J300 series bucket teeth.

Whether you are trenching through hard soil, moving abrasive gravel, or operating in sub-hard rock environments, the 3G6304 adapter ensures optimum penetration, reliable tooth retention, and maximum bucket protection. It serves as a premium aftermarket replacement part that matches or exceeds OEM specifications.

2. Detailed Specifications

3. Key Features

• Two-Strap Design: Features a top and bottom strap that slide over the bucket lip, offering an excellent holding force and protecting the bucket’s leading edge from excessive wear.
• Low-Profile Penetration: The geometry of this adapter provides a lower profile compared to standard flush-mounts, allowing the bucket to slice through compact materials with less resistance.
• High-Impact Resistance: Cast from premium alloy steel and heat-treated to withstand the brutal impacts of continuous digging in abrasive environments.
• Universal J300 Compatibility: Utilizes the industry-standard horizontal side-pin retention system, making tooth changes quick and reliable.

4. Compatible Machines and Applications

The 3G6304 bucket tooth adapter is a highly versatile Ground Engaging Tool (G.E.T.) component.

Equipment Compatibility:

1. Caterpillar Excavators: 215, 215B, 215C, 219, E180, E200, 311, 312, 315, 320, 325, and similar weight-class models.
2. Other Brands: Often retrofitted onto JCB, Bobcat, Komatsu, Case, and John Deere buckets that have been modified to accept the J300 standard.

Common Applications:

1. General construction and site prep.
2. Trenching in compact dirt and clay.
3. Quarrying and handling of weathered rock, hard gravel, and blasted ore.

5. Required Accessories

To complete the installation and use of the 3G6304 adapter, the following J300 series hardware is required:

1. Bucket Teeth: Accepts any J300 series tooth, including the standard 1U3302, J300 Tiger, J300 Twin Tiger, and Rock Penetrator styles.
2. Pin: 9J2308 (Standard J300 side pin).
3. Retainer: 8E6259 or 8J5308 (Sleeved retainer ring).

6. Manufacturing Process

Quality 3G6304 adapters undergo a rigorous production cycle to ensure maximum lifespan:

1. Precision Investment Casting: Molten alloy steel is poured into highly accurate molds, ensuring exact dimensional tolerances for a snug fit on the bucket lip.
2. Quenching and Tempering: The raw casting is heated and rapidly cooled (quenched), then reheated to a lower temperature (tempered). This process creates a hardened outer shell for wear resistance while maintaining a ductile inner core to prevent snapping under heavy impact loads.
3. Quality Control: Parts are subjected to impact testing (typically >18J) and hardness testing before being painted and shipped.

7. Common Industry FAQs

Q: What is the difference between a center adapter and a corner adapter?
A: Center adapters like the 3G6304 are welded in a straight line across the middle of the bucket lip. Corner adapters are cast with an angle (right-hand or left-hand) to protect the bucket corners and provide clearance for side cutters.

Q: Can I use a hammerless retention pin with the 3G6304?
A: The J-series is traditionally a standard hammered side-pin system. While some aftermarket companies manufacture hammerless retrofit pins for the J300 series, you must ensure the specific pin is compatible with the standard 9J2308 hole dimensions.

Q: How do I know when it’s time to replace the adapter?
A: You should replace the adapter when the nose is worn down enough that a brand-new tooth fits loosely. A loose tooth puts all the digging stress directly onto the pin, which will inevitably shear. You should also replace it if you notice deep structural cracks around the weldment.
