Custom Various Types of Excavator Buckets
Supply a wide range of excavator buckets compatible with major international OEM brands, covering models from mini-excavators (1-ton class) to heavy-duty mining excavators (over 90 tons), and offer small-batch customization.
Excavator Bucket Types & Application

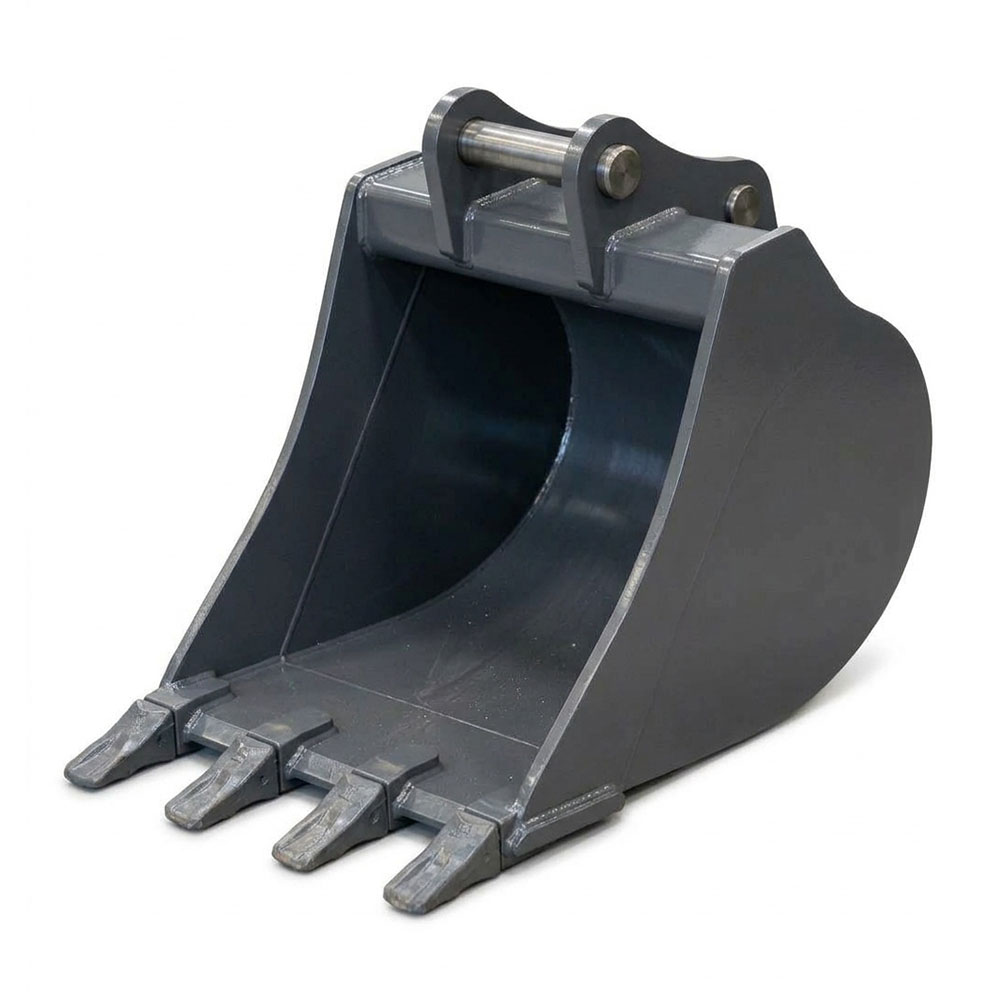

Standard / Digging Bucket
Key Features & Design
Optimized profile for smooth filling, standard lip protection, cost-effective daily earthmoving.
Primary Materials
Q355B / Q460 high-strength steel
Ideal Applications
Topsoil, clay, sand, gravel, light landscaping, and general utility work.
Suitable Excavator Class
Mini to Heavy (1 – 50 Ton)

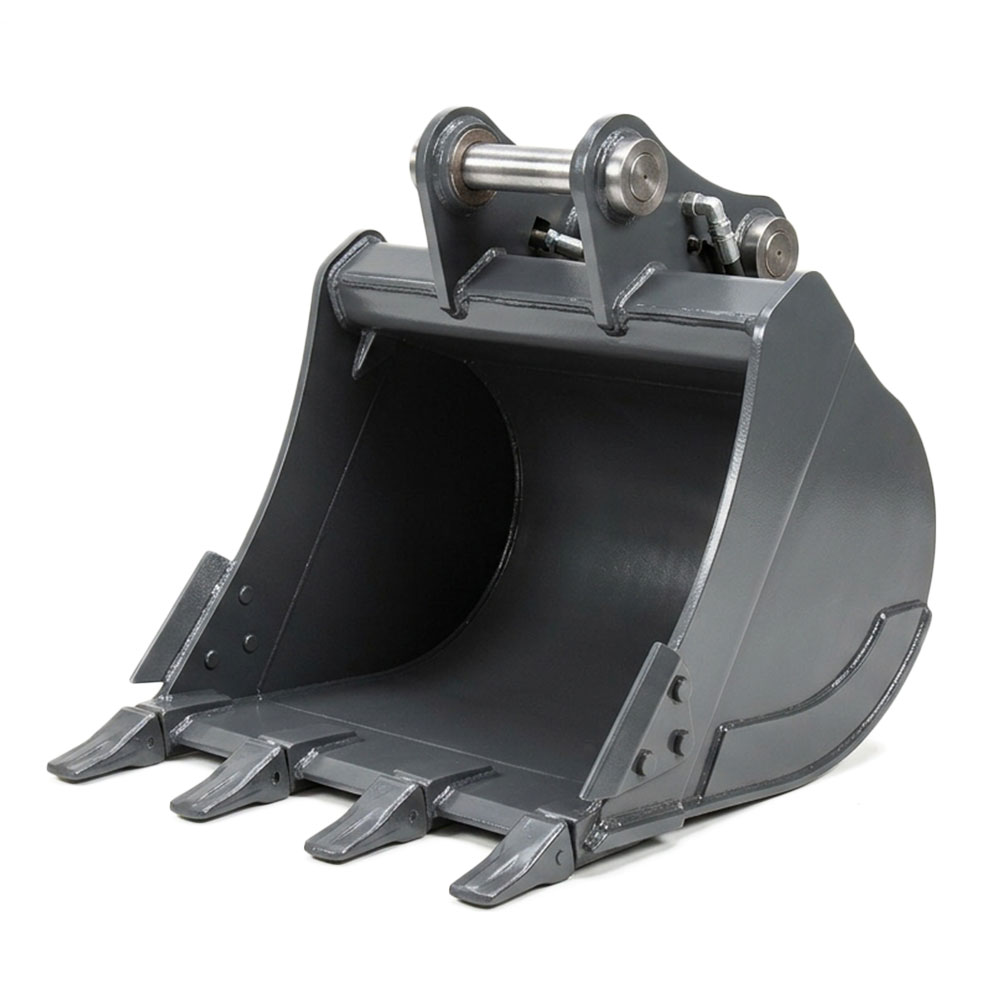

Heavy-Duty (HD) Bucket
Key Features & Design
Reinforced side cutters, thicker wear plates, and upgraded tooth systems for abrasive conditions.
Primary Materials
Q460 + Hardox 400 (wear zone)
Ideal Applications
Hard soil, caliche, fragmented rock, demolition debris, and loose granite.
Suitable Excavator Class
Medium to Large (10 – 60 Ton)

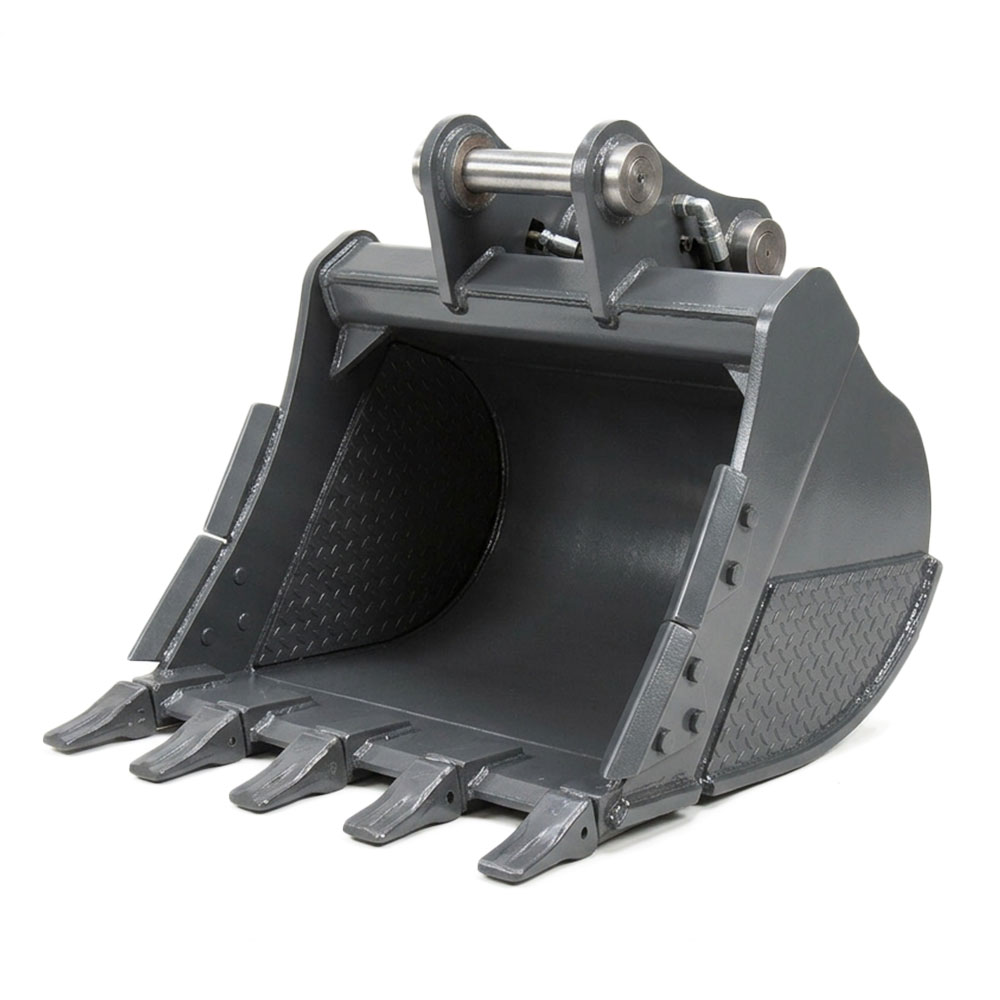

Rock / Severe-Duty (SD) Bucket
Key Features & Design
Full Hardox lining, heel shrouds, inter-tooth segment protection, heavy-duty side shrouds.
Primary Materials
Hardox 450 / NM450 / Weldox
Ideal Applications
Quarry operations, open-pit mining, un-blasted rock, and severe demolition.
Suitable Excavator Class
Heavy Excavators (20 – 90+ Ton)

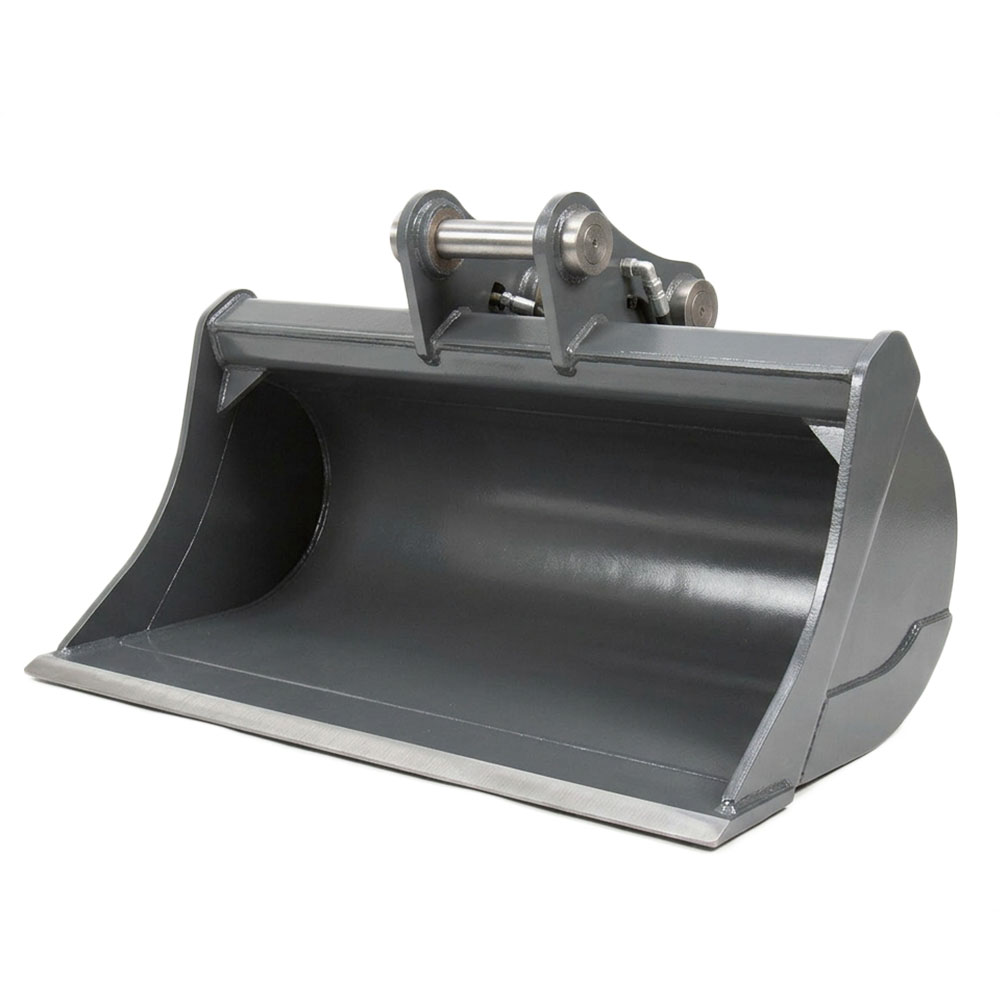

Ditching & Mud Bucket
Key Features & Design
Wide, shallow design with a straight cutting edge (no teeth) or optional bolt-on edge for smooth grading.
Primary Materials
Q355B / Q460 high-tensile steel
Ideal Applications
Slope shaping, ditch cleaning, water channel maintenance, and fine grading.
Suitable Excavator Class
Mini to Medium (2 – 35 Ton)

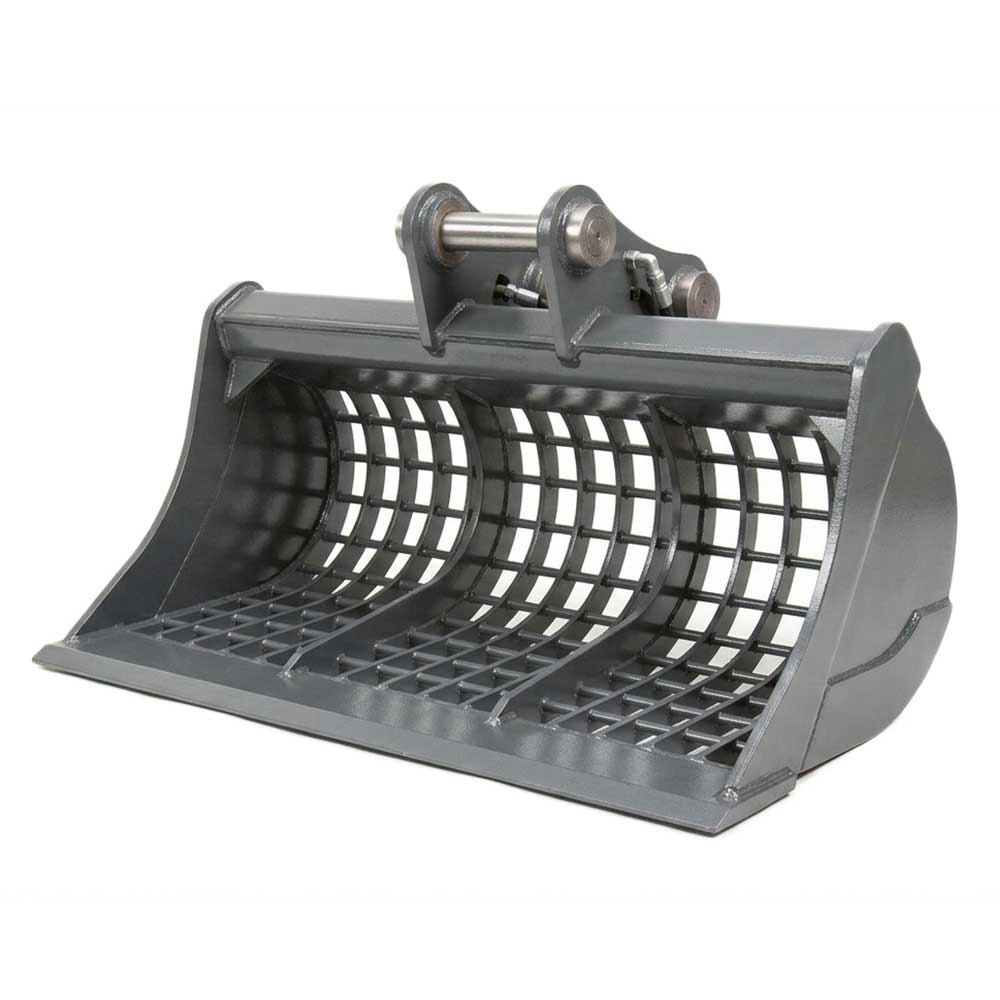

Skeleton / Screening Bucket
Key Features & Design
Grid-style bottom allowing fine materials to pass through while retaining coarse rocks or debris.
Primary Materials
Q460 + Wear-resistant grid bars
Ideal Applications
Material sorting, demolition debris recycling, riverbed clearing, and forestry prep.
Suitable Excavator Class
Compact to Heavy (5 – 50 Ton)

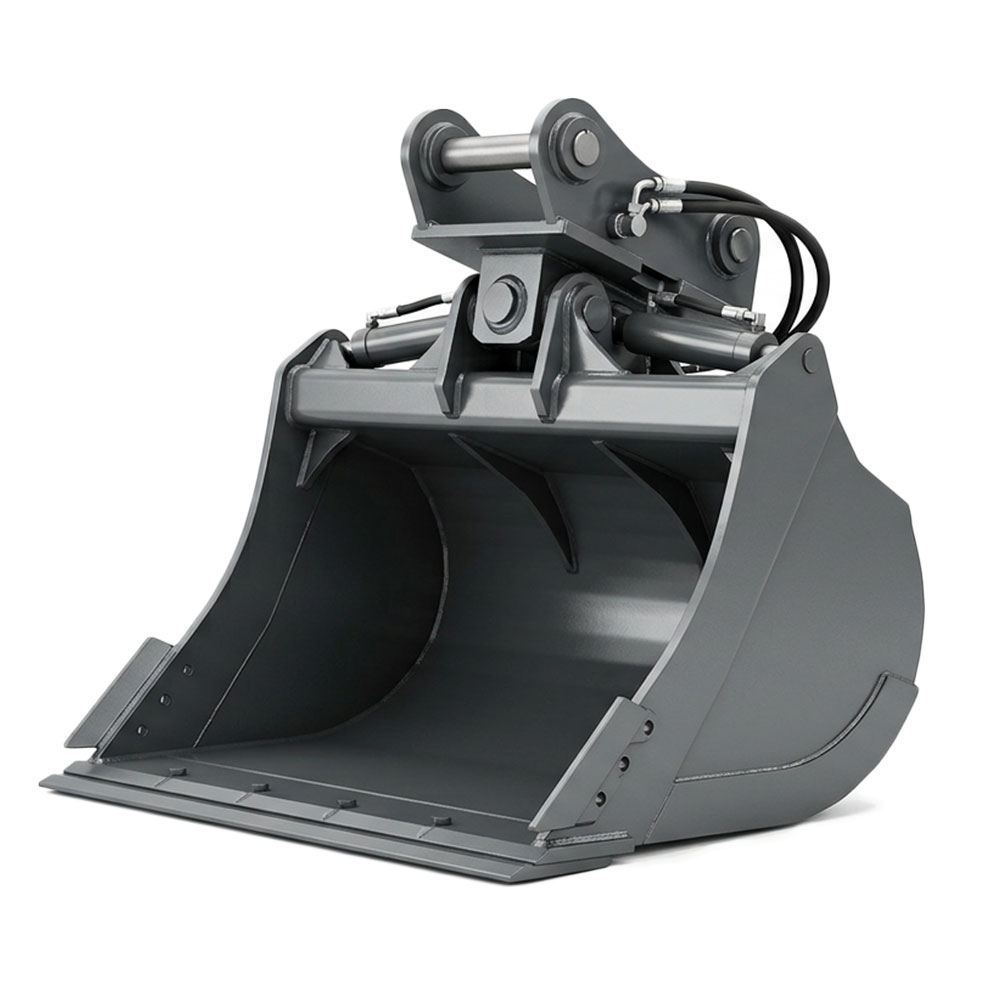

Tilt Bucket
Key Features & Design
Integrated hydraulic cylinder allowing 45° dual-directional tilting for precise angle work.
Primary Materials
High-strength alloy + Hardox edge
Ideal Applications
Complex slope finishing, trenching around utilities, and precision landscaping.
Suitable Excavator Class
Mini to Medium (3 – 30 Ton)
Manufacturing Process & Quality Craftsmanship

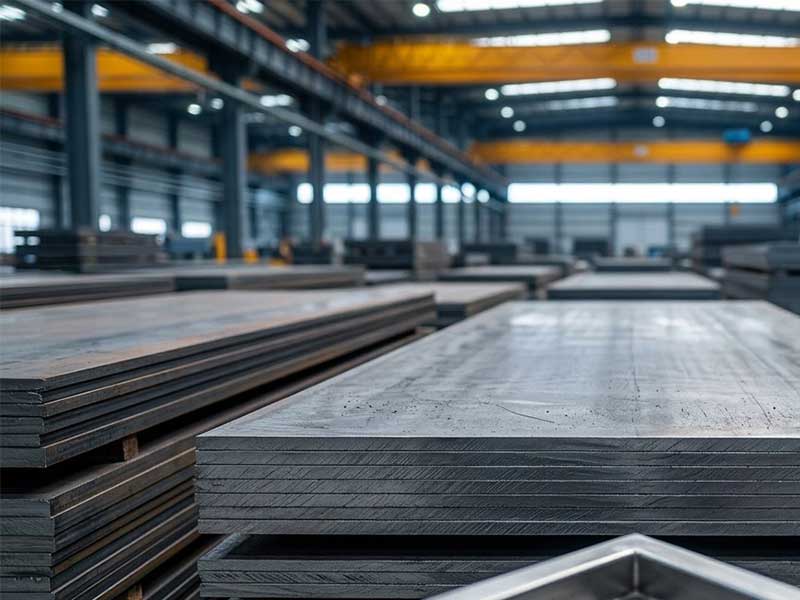

Advanced Steel Selection
Utilizing certified high-strength structural steel (Q355B/Q460) and premium wear-resistant plates (Hardox 400/450/500 or equivalent NM-series steel) placed strategically on high-wear zones.
Precision CNC Cutting & Forming
Computer-controlled plasma/laser cutting ensures accurate tolerances and tight fitment on all pin connections.

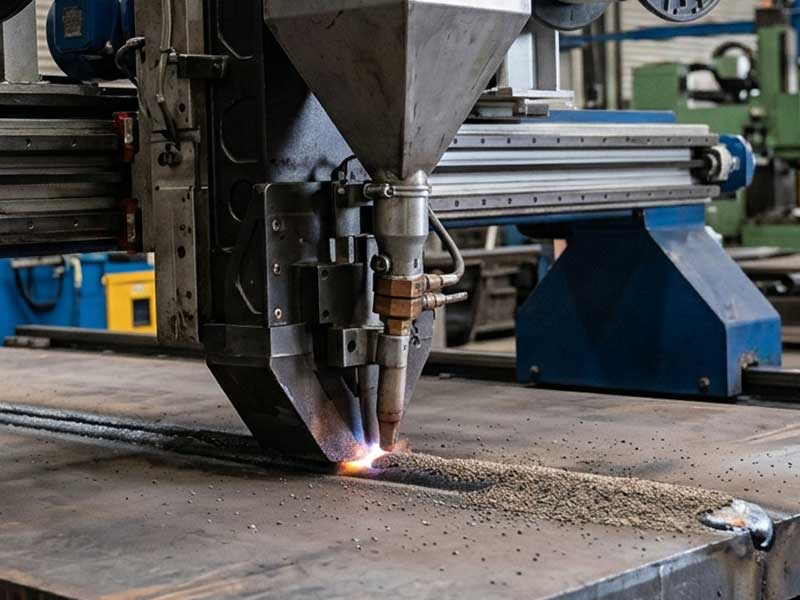

Robotic Submerged Arc Welding (SAW)
Full-penetration welding on primary load-bearing seams minimizes structural stress concentrations and prevents cracking.
Heavy-Duty GET (Ground Engaging Tools)
Fitted with top-tier forged bucket teeth, adapters, side cutters, and heel shrouds for extended wear life and easy field replacement.
Machine Compatibility & OEM Support
Compatible Machine Brands
Compatible with aftermarket parts for CAT, Komatsu, Volvo, Hitachi, Kobelco, Doosan/Develon, Hyundai, Kubota, Yanmar, Sany, XCMG, LiuGong, etc.
Bucket Attachment Interface
Standard Pin-on connections, S-Type quick couplers, CW-series couplers, and Euro-style quick hitches.
Customization (OEM/ODM)
Custom bucket widths, capacity matching (ISO/SAE rated), specialized tooth systems, and custom brand colors/logos available upon request.
Need a Custom Solution or Bulk Quotation?
Whether you need a single replacement bucket for a mini excavator or a fleet order for a mining site, our engineering team can provide precise technical drawings and competitive pricing.
