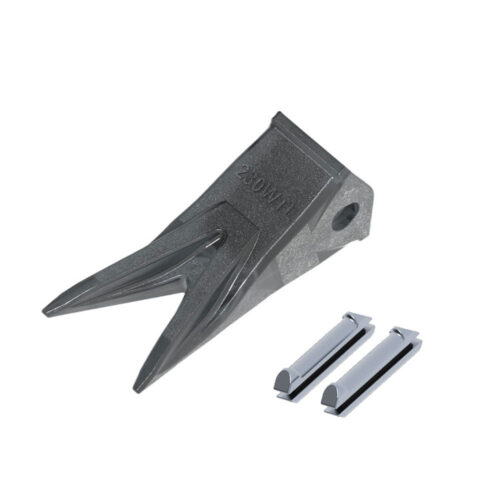

230WTL Twin Tiger Bucket Tooth | High-Penetration Wear Parts

1. Product Overview

The 230WTL Twin Tiger Bucket Tooth is engineered for maximum penetration in hard, frozen, or tightly compacted ground conditions.

Featuring a dual-pointed fracture profile, the 230WTL concentrates hydraulic digging force at two sharp contact points, dramatically reducing machine strain and improving trenching efficiency in demanding environments.

2. Key Features & Benefits

• Dual Penetration Points: V-shaped twin points easily fracture frost, shale, hardpan, and stratified rock.
• Self-Sharpening Geometry: Profile wears evenly down the length of the tooth to maintain sharp cutting edges throughout its operational life.
• High-Grade Alloy Steel: Investment-cast using heat-treated alloy steel for superior resistance to shock impacts and abrasive wear.
• Precision Fit: Manufactured to standard 230 series dimensions, ensuring a tight fit on 230 series adapters and reducing slop and pocket wear.

3. Recommended Applications

1. Utility trenching and pipeline construction through hard ground
2. Frost, frozen dirt, and clay excavation
3. Light-to-medium rock quarrying and shale digging
4. Concrete breaking and demolition prep

4. Hardware & Compatible Accessories

1. Compatible Adapter: Fits all standard 230 Series weld-on bucket adapters.
2. Locking Pin: Requires 23PN / 230 Series Flex Pins or Roll Pins (1 per tooth).

5. Manufacturing & Quality Specifications

1. Process: Precision Lost-Wax Investment Casting / Alloy Steel Forging
2. Heat Treatment: Computer-controlled quenching and tempering
3. Surface Hardness: 48–52 HRC for optimal wear resistance
4. Impact Toughness: ≥ 20J/cm² to prevent tip breakage under extreme load

6. Installation Guidelines

1. Clean Adapter Nose: Remove all debris, rust, and old pin residue from the adapter pocket and pin hole.
2. Position Tooth: Slide the 230WTL tooth firmly onto the 230 series adapter until the pin alignment holes line up.
3. Insert Retaining Pin: Drive the 23PN flex/roll pin into the side retention hole using a brass punch and hammer until centered and secure.
4. Inspect Lock: Verify the pin is fully seated within the retention groove before putting the bucket into service.

7. Frequently Asked Questions (FAQs)

Q1: When should I choose a 230WTL twin tiger tooth over a single tiger tooth (230TL)?
A: The 230WTL twin tiger tooth provides two sharp points that offer enhanced fracture performance across a wider digging path, making it ideal for tough trenching where breaking material and maintaining pocket width are both required.

Q2: Can the 230WTL tooth be used for flat grading or clean-up work?
A: No. Due to its twin-pointed profile, the 230WTL leaves an uneven, grooved trench floor. Standard flat or chisel teeth (like the 230STD) are recommended for smooth surface grading.

Q3: Are locking pins included with the tooth?
A: Pins (23PN) can be ordered together as a set or sourced separately depending on your fleet maintenance needs.
