Custom 9 Inch Hay Grapple Hook Cast Steel Bale Hooks
Discover Truecasteng’s heavy-duty 9 Inch Hay Grapple Hooks. Manufactured from premium cast steel, these durable bale grabber hooks ensure secure transport for small square bales of hay and straw.
Colour: Original / Black/ Yellow
Materials: Chromium Molybdenum Alloy
Production processes: Forging/Lost-Wax
Heat Treatment: Normalizing, Annealing, Quenching, Tempering
Surface Finish: Shot Blasting, Polishing, Baking Varnish
Certificates: ISO9001-2005
Transport Package: Wooden Case
Delivery Time: 10-15 Days
1. Product Overview
At Truecasteng, we specialize in delivering innovative and high-quality casting solutions tailored to the diverse needs of the agricultural sector. Our 9 Inch Hay Grapple Hook is engineered to be mounted onto a loader, designed specifically to move groups of small square bales of hay and straw with maximum efficiency.

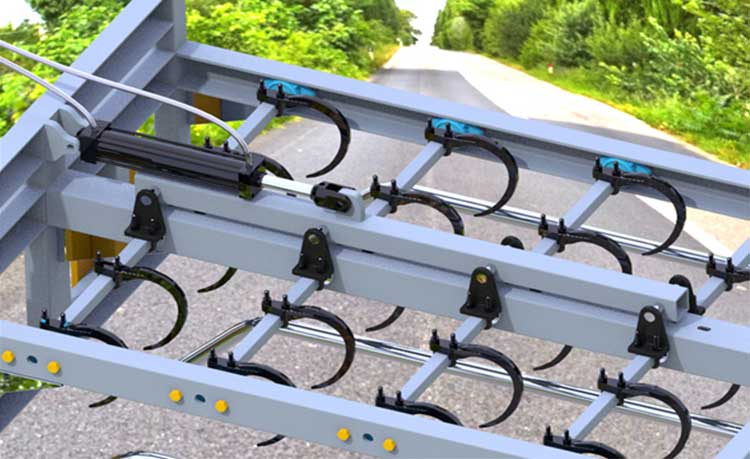

By arranging two hooks per bale, the system securely holds and transports your bundles. Once the group of bales is tight, a single hydraulic cylinder rotates all the hooks simultaneously, driving them into the top of the bales to pick up the entire group seamlessly. Built from heavy-duty cast steel, these grabber hooks are designed to last a lifetime, ensuring your bundles remain secure during transit.
2. Key Features
- Heavy-Duty Construction: Manufactured from premium cast steel to withstand rigorous daily use and last a lifetime.
- Simultaneous Actuation: Designed to work with a single hydraulic cylinder that rotates all hooks at once for a uniform, powerful grip.
- Optimal Security: Utilizes a 2-hooks-per-bale configuration to guarantee the bundle remains tight and secure during transport.
- Versatile Mounting: Easily mounts onto standard agricultural loaders and bale grabber frames.
3. Detailed Parameters
| Specification | Details |
| Product Name | High-Quality 9 Inch Hay Grapple Hook | Cast Steel Bale Grabber Hooks |
| Part No | 9 in Hay Hooks |
| Hay Grapple | 9″ Hook |
| Bolt | 3/8″ U-bolt |
| Nuts | 3/8″ |
| Weigth | 2.31 lb 1.05kg |
| Total thickness(H) | 9″ [228.6 mm] |
| Total Length(L) | 9″ [228.6 mm] |
| Width | 1.96″ [50 mm] |
| Type | Hooks |
| Colour | Original / Black/ Yellow |
| Tensile Strength(MPa) | ≥1250 |
| Yield Strength(MPa) | ≥1000 |
| Impact (J) | ≥50 |
| Hardness (HB) | 330-380 |
| Materials | Chromium Moly Alloy |
| Production Processes | Forging/Lost-Wax |
| Certificates | IS09001-2005 |
| Heat Treatment | Normalizing |
4. Manufacturing Process & Quality Assurance
At Truecasteng, our commitment to excellence dictates every step of our manufacturing process. We pay meticulous attention to detail, from initial design to the selection of raw materials and final production.
Internal Inspection:

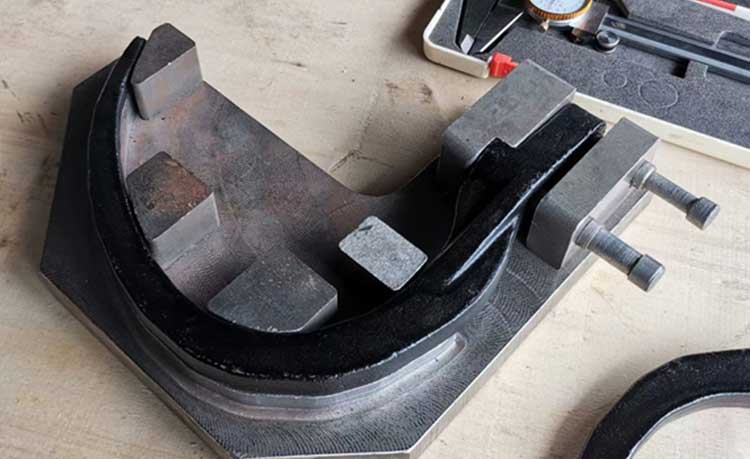

Every batch of 9 Inch Hay Grapple Hooks is rigorously inspected for strict dimensioning and material properties.
Advanced Testing:
Depending on client requirements, we perform destructive, non-destructive, and microstructural analysis.
Customer Evaluation Phase:
We deliver prototype components to the customer so they can test functionality, dimensions, strength, and appearance in real-world conditions.
Series Production:
Only after successful field evaluation and the implementation of any necessary technical adaptations do we move to series production, safeguarding high product quality, stable manufacturing, and reliable delivery.
5. Applications
The 9 Inch Hay Grapple Hook is primarily used in the agricultural and farming sectors. It is the perfect solution for:
- Tractor and skid steer loaders equipped with bale grabber attachments.
- Farms requiring the rapid, secure movement of grouped small square hay and straw bales.
- Custom agricultural machinery builders looking for reliable, cast steel OEM parts.
- These hooks integrate perfectly into multi-hook grabber frames for large-scale bale handling.
6. Accessory Information
To ensure seamless integration with your equipment, the grapple hooks require specific mounting accessories. Truecasteng can provide or accommodate:
- Heavy-duty U-bolts and securing nuts (available in various anti-corrosive finishes).
- Mounting brackets designed for standard loader frames.
Note: Hydraulic cylinders and hoses required for actuation are typically integrated into the loader’s main frame and are sourced separately.
7. Lssues Customers Should Be Aware of When Purchasing
- Loader Compatibility: Ensure your loader or grabber frame is structurally rated to handle the combined weight of the frame, the hooks, and the maximum capacity of grouped bales.
- Hydraulic Requirements: Verify that your machinery’s hydraulic system can support the single-cylinder rotation mechanism required to actuate the hooks simultaneously.
- Bale Size: These specific hooks are optimized for small square bales of hay and straw. If you are handling large round bales, a different grapple configuration may be required.
8. Common Industry & Buyer FAQs
Q: How many hooks do I need for my bale grabber?
A: We strongly recommend a configuration of two (2) hooks per bale to ensure the bundle is entirely secure while transporting.
Q: What material are the Truecasteng grapple hooks made from?
A: They are cast from heavy-duty steel, designed specifically to resist the high tension and wear associated with lifting heavy, dense bales of hay.
Q: Can I test the product before committing to a large bulk order?
A: Yes. Truecasteng offers a comprehensive customer evaluation phase where components are delivered for functional, dimensional, and strength testing prior to mass series production.
Q: Does the hook come with the mounting hardware?
A: The hooks are designed to be mounted with standard U-bolts. We can supply complete assemblies with hardware as requested during the quoting process.
