Custom Excavator Quick Coupler Castings
Upgrade your fleet with Truecasteng’s excavator quick coupler castings. Our unified cast designs provide superior strength, eliminate weld fatigue, and transform your machine into a highly efficient multi-tool carrier.
SEO Keywords: Excavator quick coupler castings, cast quick hitch, heavy-duty excavator attachments, single-piece cast coupler, construction machinery parts, Truecasteng castings, OEM coupler casting, casting solutions.
1. Product Overview: Excavator Quick Coupler Castings

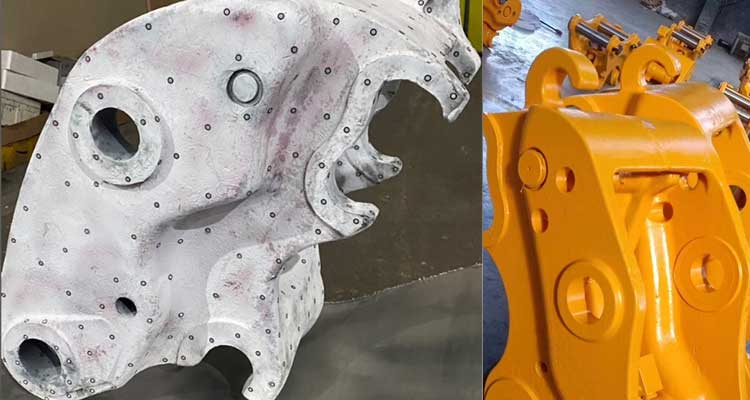

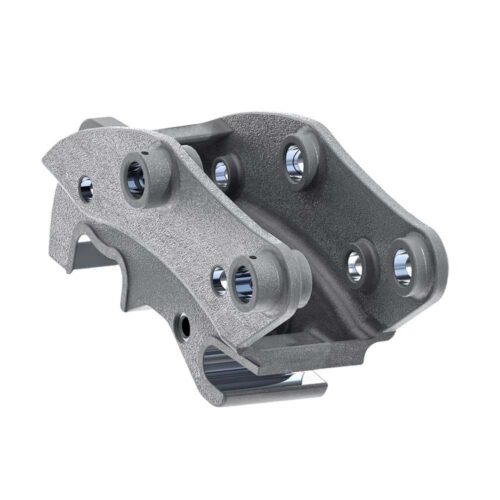

Our Excavator Quick Coupler Castings provide the ultimate freedom to design geometrically, unifying multiple traditional components into a single, highly durable piece. At Truecasteng, we transform your machine into a secure and reliable multi-tool carrier.
When you eliminate the need to weld multiple plates together, the result is a product that not only looks better economically but performs exceptionally in the field. Geometry is essentially free in a casting, allowing us to add critical strength precisely where it is needed—a process that is simple in a casting but incredibly difficult and failure-prone in a weldment.
Our extensive range of cast couplers and buckets ensures your equipment can seamlessly access the accessories needed to maximize production hours, reduce work lead-time, enhance yield, and critically increase team safety.
2. Key Features & Advantages
- Unified Single-Piece Design: Eliminates weak points associated with traditional weldments, radically reducing the risk of stress fractures and weld fatigue.
- Optimized Strength-to-Weight Ratio: The casting process allows us to thicken high-stress areas (like pinholes and hooks) while reducing weight in low-stress zones.
- Enhanced Safety: A more structurally sound coupler minimizes the risk of attachment drops, protecting your ground crew and operators.
- Cost-Effective Durability: Fewer manufacturing steps (no complex welding or assembly) combined with a longer operational lifespan lowers your total cost of ownership.
- Seamless Accessory Integration: Precision-engineered to accommodate a wide variety of buckets, grapples, rippers, and breakers.
3. Detailed Parameters
| Parameter | Specification |
| Product Name | Supply Premium Excavator Quick Coupler Castings |
| Part No | SG-10 |
| High (H) | 13.31″ [338 mm] |
| Length(L) | 10.35″ [262.9 mm] |
| Min P | 18.58″-19.68″ |
| Min P | 23.70″-23.90″ |
| Total thickness(H) | 13.38″ [340 mm] |
| Total Length(L) | 33.53″ [851.6 mm] |
| Width | 17.3″ [440 mm] |
| Type | Pin Coupler |
| Colour | Original / Black/ Yellow |
| Materials | Chromium Moly Alloy |
| Production Processes | Lost-Wax/ Silica Sand |
| Certificates | IS09001-2005 |
| Heat Treatment | Normalizing, Quenching, Tempering |
| Tensile Strength(MPa) | ≥1100 |
| Yield Strength(MPa) | ≥1000 |
| Impact (J) | ≥35 |
| Hardness (HB) | 295-330 |
4. Manufacturing Process

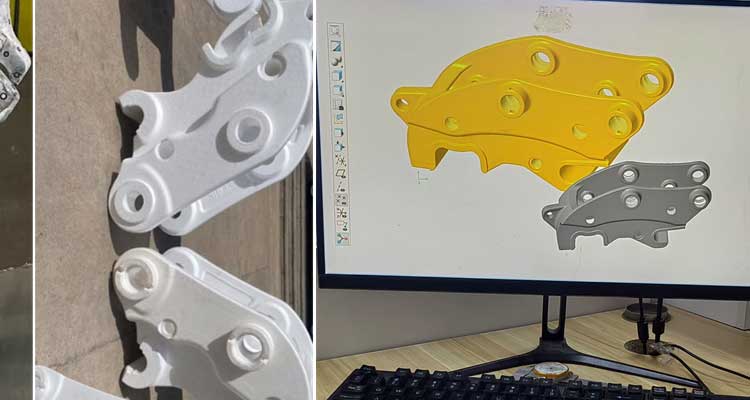

- Engineering & 3D Modeling: Designing the optimal geometric shape to maximize load-bearing capabilities.
- Mold Creation & Pouring: Using premium precision casting techniques to pour molten high-grade alloy steel into the unified mold.
- Heat Treatment: Applying specialized heating and cooling cycles to enhance the molecular structure, ensuring the coupler can withstand extreme impact.
- CNC Machining: Precision boring of the pinholes to ensure an exact, zero-play fit with your machine’s linkage.
- Quality Control: Rigorous Non-Destructive Testing (NDT), including magnetic particle inspection and ultrasonic testing, to guarantee zero internal defects.
5. Common Applications
The quick coupler castings are the backbone of efficiency across multiple heavy-duty industries:
- Construction & Demolition: Rapidly switching between buckets, breakers, and shears.
- Mining & Quarrying: Withstanding the extreme breakout forces required in rocky environments.
- Agriculture & Forestry: Transitioning between earth-moving buckets and specialized grapples.
6. Buyer’s Guide: What to Watch Out For When Purchasing
When sourcing quick coupler castings for your fleet, ensure you have the following information ready to guarantee a perfect fit:
- Pin Diameter & Center-to-Center Distance: Measure the exact dimensions of your excavator’s arm and link pins. Precision is critical for a safe, tight connection.
- Dipper Gap (Width): Ensure the internal width of the coupler matches the external width of your machine’s stick.
- Machine Operating Weight: Select a casting rated for your machine’s specific tonnage to avoid overloading the hitch.
- Hydraulic vs. Mechanical: Verify whether the casting is being purchased to house a manual safety pin system or a fully hydraulic cylinder setup.
7. Frequently Asked Questions (FAQs)
Q: Why is a cast coupler better than a welded coupler?
A: Welded couplers rely on multiple pieces of steel joined together. Every weld is a potential point of failure under high stress. A Truecasteng single-piece casting eliminates these stress risers, offering superior structural integrity and a longer lifespan.
Q: Can Truecasteng manufacture custom geometries for specific attachments?
A: Yes. Because geometry is highly flexible in the casting process, we can provide comprehensive OEM/ODM services to design couplers that fit proprietary attachment systems perfectly.
Q: Do these castings come fully machined?
A: We offer both raw castings and fully CNC-machined, ready-to-assemble parts based on your procurement needs.
Q: How do you ensure the internal quality of the thick cast sections?
A: We utilize strict Non-Destructive Testing (NDT) protocols on all structural heavy-duty castings to ensure there is no internal porosity or shrinkage, guaranteeing maximum safety on the job site.
