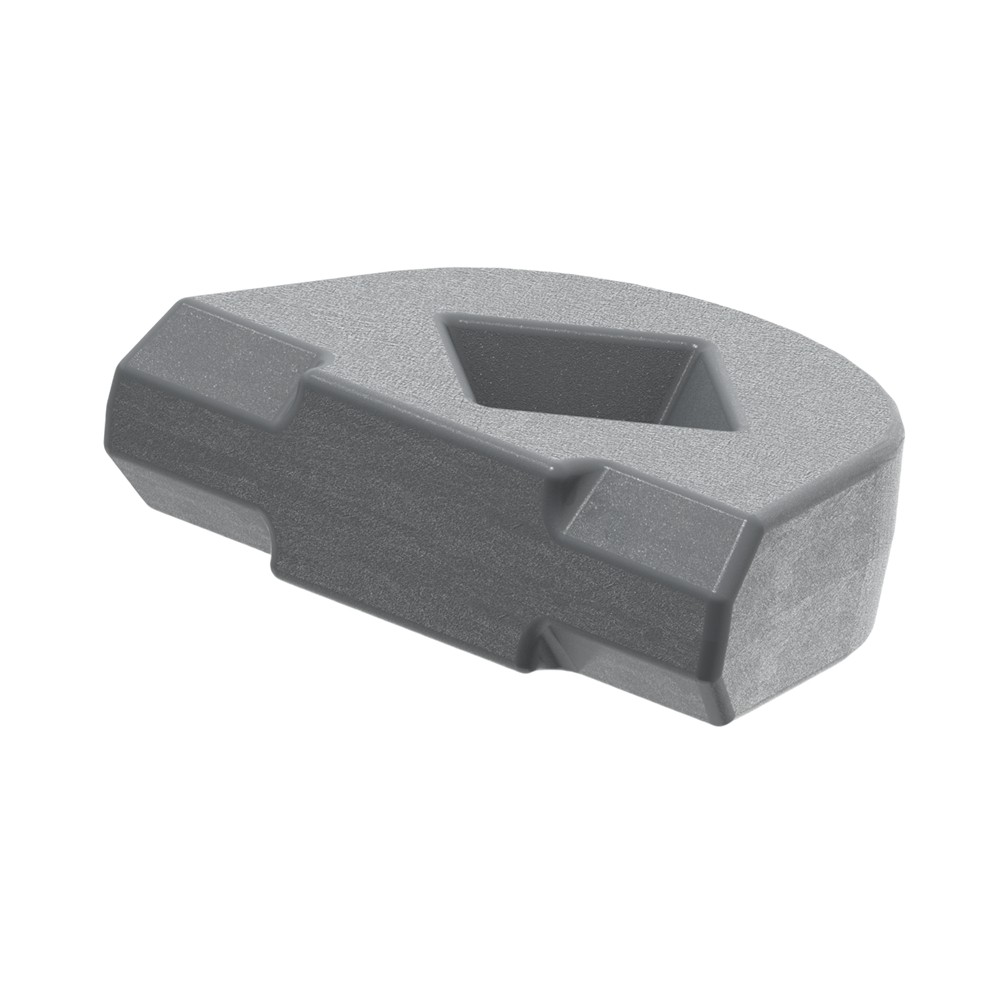

Custom Forged Steel Lower Mounting Brackets

1. Product Introduction

Positioned at the baseline of the unsprung mass, Truecasteng’s Forged Steel Lower Mounting Brackets (also known as Axle Seats or Spring Perches) are custom-engineered to survive the most abusive environment on a vehicle chassis. Unlike upper brackets that primarily manage suspension rebound and structural tensile loads, lower brackets are clamped directly to the axle housing. They endure relentless road shocks, debris bombardment, and massive torsional shear forces during braking and acceleration. Truecasteng utilizes closed-die steel forging to replace fragile cast-iron brackets, providing an unbreakable foundation for commercial axles.

2. Product Features

• 1. High Torsional & Fatigue Yield: Specially forged to optimize internal grain flow lines around high-stress radiuses, enabling the bracket to absorb continuous cyclic twisting without stress cracking.
• 2. 100% Flush Axle Mating: The axle-contact surface (tailored for round or square axle tubes) is precision contour-milled via CNC hubs to tolerances within 0.05mm, preventing any bracket slippage under severe load.
• 3. Anti-Slip U-Bolt Guides: Features reinforced outer channels engineered to cradle high-tensile U-bolts rigidly, distributing the enormous clamping force uniformly and preventing torque loss.Stone-Guard
• 4. Anti-Corrosion Coating: Because of its proximity to the road, the bracket is shielded with a thick, impact-resistant E-coat and topcoat formulation that resists gravel blast and winter de-icing chemicals.

3. Manufacturing Process

• 1. Alloy Selection: Premium high-hardenability alloy steels (e.g., AISI 4140, 42CrMo4) are used to ensure thorough through-hardening even in thick structural sections.
• 2. Multi-Stage Closed-Die Forging: Progressive dies condense the metal matrix at crucial junction points to maximize material density.
• 3. Aggressive Quenching & Tempering (Q&T): Processed under a rigid thermal recipe to raise the yield-to-tensile ratio, guaranteeing the component will not deform under heavy bottoming-out shocks.
• 4. Dedicated Fixture Machining: Multi-axis CNC centers mill the axle seat radius and precision-bore the center dowel pin hole in a single setup.
• 5. 100% Magnetic Particle Testing: Every piece undergoes compulsory MPI testing post-machining to guarantee zero hidden surface defects before coating.

4. Applications & Companions

• Applications: Heavy-duty drive axles, trailer axle clamping blocks, and lower air-suspension trailing arm seats.
• Companion Fasteners: Must be deployed with Truecasteng Grade 10.9/12.9 Heavy-Duty U-Bolts and matching leaf spring center pins to achieve the targeted structural locking force.

5. Procurement Guidelines

• Axle Profile Specification (Round vs. Square): The lower bracket must mirror your axle housing exactly. Please specify your axle tube diameter (e.g.,127 mm$, 146mm) or square tube cross-section profiles.
• Center Pin Pocket Metrics: The dowel/center pin hole depth and diameter are critical to lock the leaf pack configuration. Please re-verify the leaf spring center bolt head dimensions to ensure zero slop.

6. Industry & Buyer FAQs

Q1: Why is lower mounting bracket failure typically more catastrophic than upper bracket failure?
A: An upper bracket failure usually triggers severe vibrations or shock malfunction. However, a fractured lower bracket releases the axle housing from the spring pack entirely, causing instantaneous loss of vehicle steering, severe tire shredding, or catastrophic axle detachment. Truecasteng forgings eliminate this liability completely.

Q2: Does Truecasteng support manufacturing based on OEM numbers or physical samples?
A: Yes. Our engineering department specializes in reverse engineering. You can provide standard OEM cross-references, physical components, or CAD files, and we will handle tooling design and production.

Q3: What is your typical lead time for mass production orders?
A: For new projects, tooling development and initial sampling take 10to 30 days. Once samples are approved, standard mass production lead time is typically around 7-15 days.

Q4: Can you match our existing bracket design?
A: Yes – Send your sample or CAD file for DFM analysis within 48hrs.

Q5: What’s your capacity for bulk orders?
A: 50,000+ units/month with 5% volume discount beyond 2,000pcs.

Q6: Do you provide salt spray test reports?
A: Standard 500hr ASTM B117 reports included – 1,000hr available on request.

Q7: Why choose forged mounting brackets over cast iron ones for suspension systems?
A: Suspension components bear severe cyclic loading and road impacts. Castings are prone to internal porosity and shrinkage defects. Forging compresses the metal structure and aligns the grain flow, drastically increasing fatigue life and impact resistance, eliminating catastrophic failures in the field.
