OEM 9W8452 Bucket Tooth & 8E6464 Adapter Assembly Set
The highly durable 9W8452 bucket tooth and 8E6464 adapter. Made from Chromium Moly alloy for loaders, scrapers, and rippers. ISO9001-2005 certified.
Colour: Original / Black/ Yellow
Materials: Chromium Molybdenum Alloy
Production processes:
Lost-Wax /Precoated Silica Sand
Heat Treatment:
Normalizing, Annealing, Quenching, Tempering
Surface Finish:
Shot Blasting, Polishing, Baking Varnish
Certificates: ISO9001-2005
Transport Package: Wooden Case
Delivery Time: 10-15 Days
1. Product Overview
The 9W8452 Bucket Tooth and 8E6464 Adapter combination represents a top-tier Ground Engaging Tool (GET) solution engineered for maximum durability in harsh environments. Designed specifically for heavy-duty earthmoving equipment, these cast parts are ideal for use on loaders, scrapers, rippers, and scarifiers.
Formed from a specialized medium-carbon, chromium, nickel, and molybdenum steel alloy, these parts offer exceptional strength, deep-hardening properties, and ultimate toughness. They provide superior resistance to both high-impact wear and daily abrasion, ensuring your machinery stays in the field longer.
2. Detailed Parameters
Below are the exact technical specifications for the 9W8452 tooth and 8E6464 adapter assembly to ensure compatibility with your machinery:
| Specification | Details |
| Product Name | 9W8452 bucket tooth & 8E6464 Adapter |
| Part No | 9W8452 + 8E6464 |
| Bucket Tooth | 9W8452 |
| Adapter | 8E6464 |
| Pin/washer | 8E-0468/8E-0469 |
| Weigth | 12kg / 26.4lb |
| Tensile Strength(MPa) | ≥1350 |
| Yield Strength(MPa) | ≥1100 |
| Impact (J) | ≥25 |
| Hardness (HB) | 450-520 |
| Total thickness(H) | 5.04″ [128 mm] |
| Total Length(L) | 23.18″ [589 mm] |
| Width | 4.88″ [124 mm] |
| Type | Pin/washer |
| Colour | Original / Black/ Yellow |
| Materials | Chromium Moly Alloy |
| Production Processes | Lost-Wax/ Silica Sand |
| Certificates | IS09001-2005 |
| Heat Treatment | Normalizing, Quenching, Tempering |
3. Key Features & Components

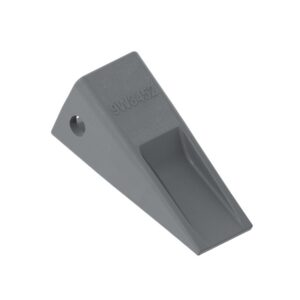

1. The 9W8452 Bucket Tooth
Engineered with an optimized profile for superior penetration and material flow. The robust Chromium Moly alloy construction ensures it can handle high-impact scraping and digging.

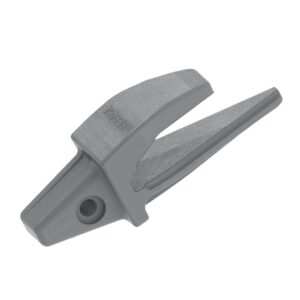

2. The 8E6464 Adapter
Provides a seamless, secure fitment to your bucket lip. Its deep-hardened steel composition prevents premature wear, effectively protecting the bucket framework.

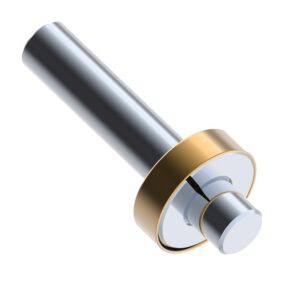

3. Secure Locking Accessories
This system utilizes a highly secure Pin and Washer setup (8E-0468/8E-0469). This ensures the tooth remains firmly locked to the adapter during the most strenuous vibrations and impacts, drastically reducing the risk of part detachment.
4. Advanced Manufacturing Process
Our production utilizes rigorous Lost-Wax and Silica Sand casting processes to ensure precision and reliability:
- Pattern & Mold Creation: The process begins with a highly precise pattern, built slightly oversized to perfectly compensate for the natural contraction of the steel. A precise mold is then crafted from this pattern.
- Melting & Pouring: To achieve the premium Chromium Moly alloy, the steel is melted and heated to the precise casting temperature in a large furnace. It is then poured using a counter-gravity technique for optimal density and minimal defects.
- Cooling & Shell Removal: Cast “trees” are transported to a dedicated cooling belt utilizing nitrogen. Finally, an utterly automatic knock-off hammer shatters the ceramic shells to release the castings, eliminating nearly all ceramic residue cleanly.
- Premium Heat Treatment: Components undergo normalizing, quenching, and tempering to lock in a hardness of 450-520 HB and a tensile strength of ≥1350 MPa.
5. Quality Assurance & Inspection
All products are thoroughly inspected internally at Truecasteng.
- Strict Tolerance Checks: Dimensioning and core material properties are strictly verified.
- In-Depth Analysis: When required, destructive, non-destructive, and microstructural analyses are executed.
- Customer Evaluation Phase: We support sending components to the customer for extensive field evaluation. Buyers can test functionality, dimensions, strength, and appearance. Mass series production is only initiated once the technical parameters meet the customer’s exact operational requirements, safeguarding our high degree of delivery reliability.
6. Purchasing Guide & FAQs
Q1: What machinery is this assembly compatible with?
The 9W8452 and 8E6464 set is highly versatile, designed primarily for loaders, scrapers, rippers, and scarifiers used in construction, mining, and heavy earthmoving operations.
Q2: What should I be aware of when purchasing?
Ensure that the 4.88″ width and 23.18″ total length fit your current bucket lip configurations. Also, consider the terrain you are operating in; the high impact rating (≥25 J) makes this ideal for rocky and abrasive environments.
Q3: Do the teeth come with pins and washers included?
This depends on your specific purchase order. The system uses the 8E-0468 pin and 8E-0469 washer. Please confirm with your sales representative if you require the accessories bundled with the tooth and adapter.
Q4: Can I request customized colors?
Yes. The standard finishes are Original (Bare metal), Black, and Yellow. Custom painting requirements can be discussed prior to mass production.
