TB1001-23 Bucket Tooth Adapter 230 Series Weld-On GET Adapter

1. Product Overview

The TB1001-23 Bucket Tooth Adapter is Forged/cast from high-grade alloy steel and heat-treated for maximum hardness.
Minimizes nose-pocket wear, prevents pin shear, and withstands harsh abrasive environments across.

2. Key Features & Benefits

• Precision Nose Fitment: Machined nose pocket ensures a tight, wobble-free fit with 230-series teeth, reducing shock loads and extending the lifespan of both tooth and adapter.
• High-Strength Alloy Metallurgy: Manufactured using low-carbon, high-tensile alloy steel engineered to resist brittle fracturing and deformation under severe impact.
• Superior Weldability: Optimally formulated chemistry enables clean, crack-free welding directly onto bucket lips or custom tooth bars without compromising structural integrity.
• Universal 230-Series Compatibility: Accepts all standard 230-series tooth profiles, giving operators flexibility across different digging conditions.
• Reinforced Structure: Heavy strap design distributes digging force evenly across the bucket’s front edge, protecting the main bucket structure from premature wear.

3. Technical Specifications

4. Applications

• Compact & Mini Excavators: Ideal for 3 to 9-ton excavators performing utility trenching, footings, and foundation work.
• Skid Steer & Track Loaders: Perfect for custom tooth bar assemblies and loader bucket lip reinforcement.
• Backhoes & Wheel Loaders: High-impact digging in hardpan, clay, compacted gravel, and rocky soil.
• Demolition & Utility Work: Breaking through asphalt, frozen ground, and concrete debris.

5. Accessories & Compatible Components

To complete the assembly, the TB1001-23 adapter pairs with the following standard components:

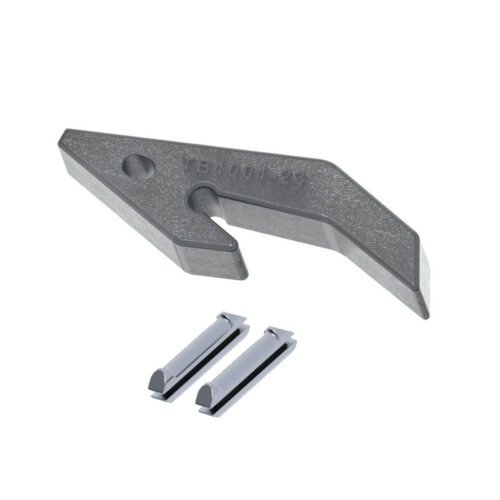

23FP Flex Pins: Horizontal flex pins with rubber inserts (shown with adapter) that lock the tooth securely onto the adapter nose while allowing easy field replacement.

230 Series Bucket Teeth:

1. 230ST (Standard Dirt Tooth): General excavation and dirt loading.
2. 230WTL (Twin Tiger Tooth): Aggressive twin-point profile for maximum penetration in hard pan, frost, or rock.
3. 230SYL (Penetration Tooth): Sharp chisel profile for hard-packed soils.
4. 230FL (Flared Tooth): Wide flare profile for clean trench bottoms and smooth grading.

6. Manufacturing Process & Quality Control

1. Precision Casting / Forging: Manufactured using lost-wax silica sand casting or high-density forging to ensure strict dimensional accuracy and dense internal grain structure.
2. Quenching & Tempering Heat Treatment: Advanced thermal processing achieves an optimal balance between outer surface hardness (450-520HB) and inner core toughness.
3. Shot Peening: Surface shot peening relieves internal mechanical stress and eliminates micro-cracks to maximize fatigue resistance.
4. Quality Inspection: 100% fitment gauge testing, ultrasonic flaw detection (UT), and impact testing ensure every unit meets OEM standards.

7. Installation & Usage Guidelines

Welding Instructions

1. Edge Preparation: Thoroughly clean the bucket lip welding zone (remove grease, rust, paint, and slag). Ensure the lip thickness measures 1.38″ to 1.41″.
2. Pre-Heating: Pre-heat the adapter and bucket lip joint area to 150°C – 200°C (300°F – 400°F) to eliminate moisture and prevent heat-affected zone (HAZ) cracking.
3. Welding Protocol: Use low-hydrogen electrodes (e.g., AWS E7018) or equivalent MIG wire. Weld in multi-pass bevel welds along the top, bottom, and side bevels.
4. Cooling: Allow the weld to cool slowly under ambient conditions; do not quench with water.

Tooth Assembly

1. Align the 230-series tooth onto the adapter nose.
2. Insert the 23FP flex pin into the side pin hole.
3. Drive the flex pin with a hammer until the center notch locks into position inside the internal retaining groove.

8. Frequently Asked Questions (FAQs)

Q1: What bucket lip thickness does the TB1001-23 adapter accommodate?
A: The TB1001-23 is designed for cutting edges/lips with a thickness of 1-3/8″ (1.41″ / ~36 mm).

Q2: What pin type is required for securing bucket teeth to this adapter?
A: It utilizes standard 23FP / 230PN flex pins, which feature a rubber core sandwiched between steel sides to hold the tooth firmly in place during operation.

Q3: Can this adapter be used to build a custom bolt-on tooth bar?
A: Yes. The flat bottom profile and weldable alloy composition make the TB1001-23 one of the most popular adapters for fabricating custom aftermarket tooth bars for skid steers and tractor buckets.

Q4: Is this adapter compatible with other brands of 230-series teeth?
A: Yes, it is fully interchangeable with standard 230-series tooth profiles across major aftermarket G.E.T. manufacturers (H&L, Fabco, Hensley style, etc.).

Q5: Should I choose a forged or cast version for my application?
A: Forged adapters offer higher impact strength for heavy rock, frost, and extreme demolition work. Cast adapters provide an economical, highly wear-resistant solution for general dirt excavation, sand, and fleet rental applications.
