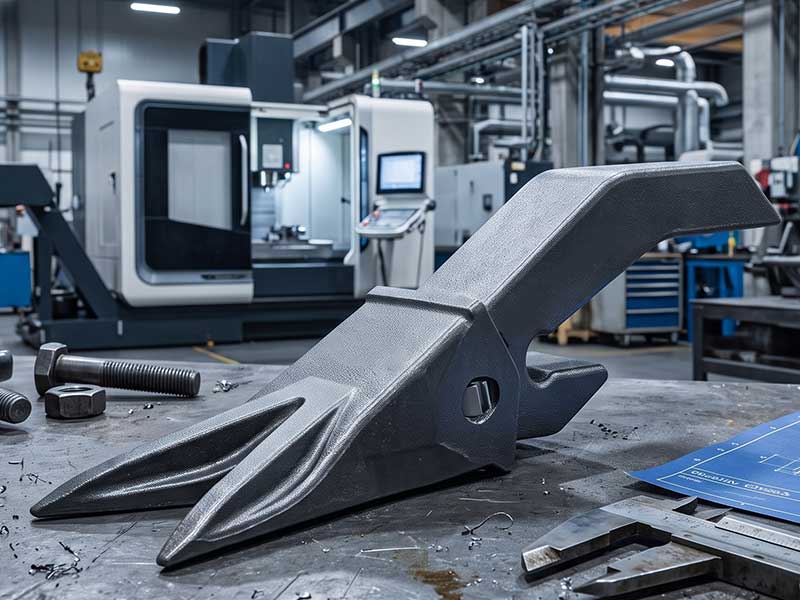

Tiger Bucket Teeth vs Penetration Bucket Teeth: Key Differences & Selection Guide
As professional bucket teeth manufacturer and bucket teeth supplier, we supply a full range of GET (Ground Engaging Tools) for excavators, loaders and backhoes.
Tiger bucket teeth and Penetration bucket teeth are two widely adopted high-performance tooth profiles designed for hard digging conditions, yet their geometric design, service life and suitable working environments differ greatly. Choosing the correct bucket tooth directly improves digging efficiency, reduces fuel consumption and lowers your overall parts replacement cost.
Both tooth designs feature self-sharpening geometry. During continuous abrasion, the tip maintains sharpness instead of turning blunt, which is a core advantage over standard general-duty bucket teeth.
The fundamental distinction lies in design priority: Tiger teeth pursue maximum penetration capability, while Penetration teeth strike a balanced performance between penetration and wear resistance.
Table 1: Core Feature Comparison – Tiger Bucket Teeth VS Penetration Bucket Teeth
| Item | Tiger Bucket Teeth | Penetration Bucket Teeth |
|---|---|---|

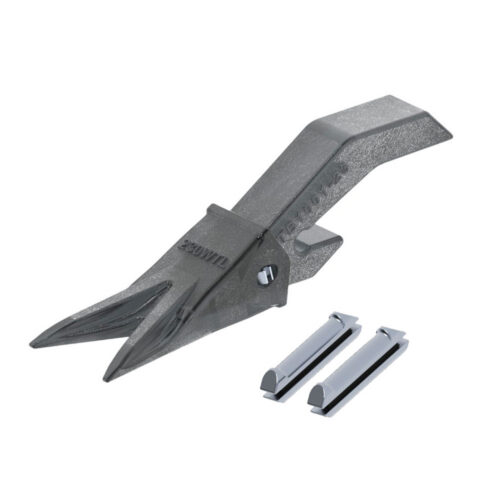

| Profile Design | Ultra-sharp V-shaped narrow tip; Twin Tiger variant with dual points; minimum contact area at tooth point | Tapered conical sharp tip; wider tooth body with extra wear material than Tiger teeth |
| Penetration Performance | Highest penetration force; 15%–22% easier to break frozen ground & compact hardpan (industry field test data) | Excellent penetration, roughly 8–12% lower penetration efficiency compared to Tiger teeth |
| Wear Material & Lifespan | Limited wear-resistant alloy volume at the tip; shorter service life | Extra wear material integrated on tooth flank; 25%–35% longer service life under identical working conditions |
| Strength Risk | Prone to rapid tip abrasion; higher risk of tip breakage under heavy impact on large boulders | Balanced impact resistance and abrasion resistance; lower fracture failure rate |
| Self-Sharpening Property | Excellent; sharp tip retained until nearly fully worn | Very good; maintains effective digging point for extended operation cycles |
Table 2: Working Condition Matching & Procurement Reference
| Application Scenario | Recommended Tooth Type | Practical Operation Notes |
|---|---|---|
| Frozen soil, heavily compacted clay, hard shale, trenching & foundation excavation | Tiger Bucket Teeth | Prioritize digging efficiency; suitable for short-cycle tough penetration tasks. Available as OEM casting GET parts from reliable bucket teeth supplier. Twin Tiger teeth for wider bucket breakout demands. |
| Lightly compacted rock, medium-hard clay, general earthmoving, long-term continuous excavation | Penetration Bucket Teeth | Best cost-performance balance; minimizes frequent tooth replacement. Ideal choice for contractors running long-hour projects. |
| Highly abrasive sand & gravel, loose rock piles | Neither option; Heavy-Duty Abrasion Teeth | Both Tiger and Penetration teeth will wear rapidly in pure abrasive materials |
| Mixed working conditions (alternating hard ground and ordinary soil) | Penetration Bucket Teeth | Avoid frequent switching of wear parts; reduce machine downtime |
Supplementary Industry Knowledge
1. Material & Manufacturing Standard
Qualified bucket teeth manufacturer adopts low-alloy steel with quenching & tempering heat treatment, achieving hardness HRC 48–54. Both tooth styles support lost wax precision casting and forging processes, compatible with mainstream models of Caterpillar, Komatsu, Doosan, Sany and other excavator brands. We support OEM & ODM customization for global buyers.
2. Economic Benefit Analysis
Many operators only focus on penetration speed and blindly select Tiger bucket teeth. For long-term continuous projects without extremely hard ground, frequent replacement of worn Tiger teeth will push up total operation costs. Penetration bucket teeth effectively cut inventory and maintenance downtime for fleet owners.
3. Installation Tip
When configuring bucket teeth on one bucket, mixed installation is acceptable in some cases: install Tiger teeth at bucket corners for breakthrough, and use Penetration bucket teeth in the middle positions to balance overall service life. Consult your professional bucket teeth supplier for customized configuration solutions.
Final Selection Summary
- Choose Tiger Bucket Teeth: Your primary challenge is piercing extremely hard, frozen or heavily cemented ground, and you prioritize digging efficiency over service life.
- Choose Penetration Bucket Teeth: You need stable penetration performance together with extended wear life, and pursue long-term comprehensive cost savings.
If you are searching for a trustworthy bucket teeth manufacturer and supplier of high-quality casting GET parts, Truecasteng provides consistent quality, flexible MOQ and worldwide delivery for Tiger bucket teeth, Penetration bucket teeth and other excavator wear components.
