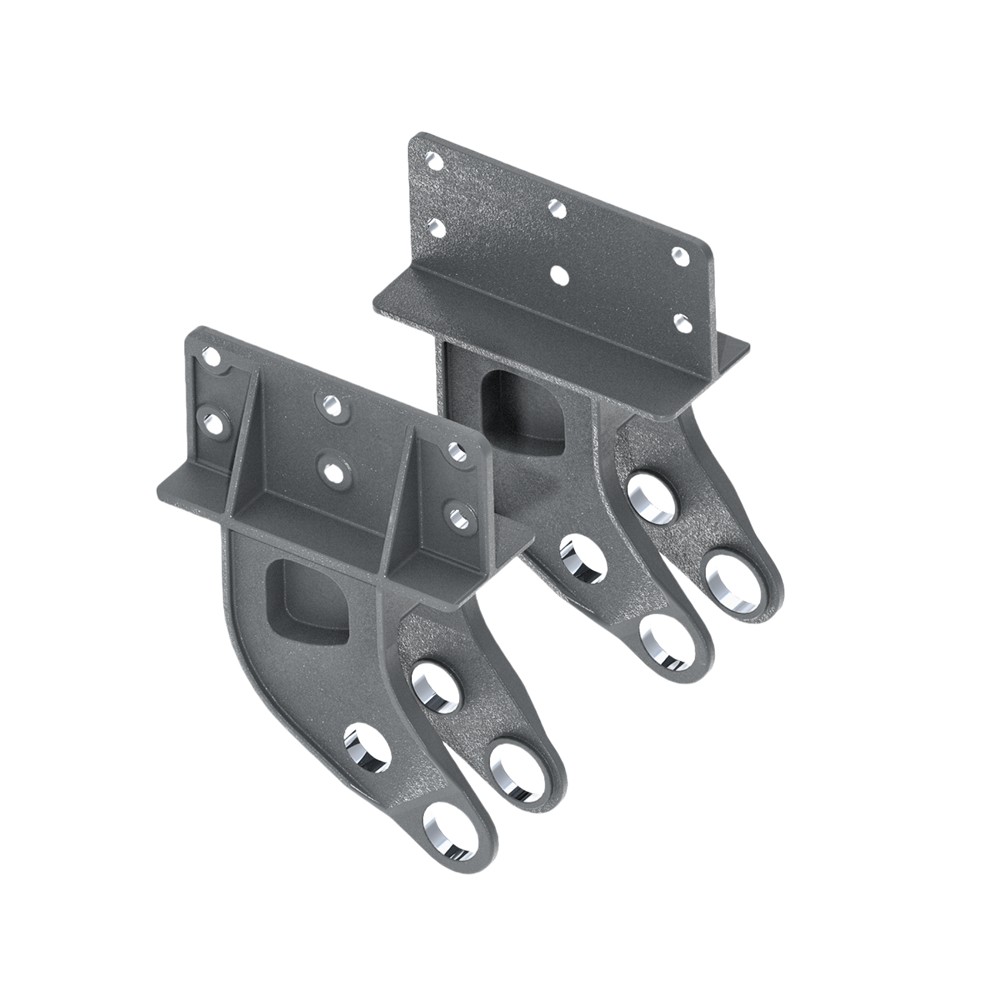

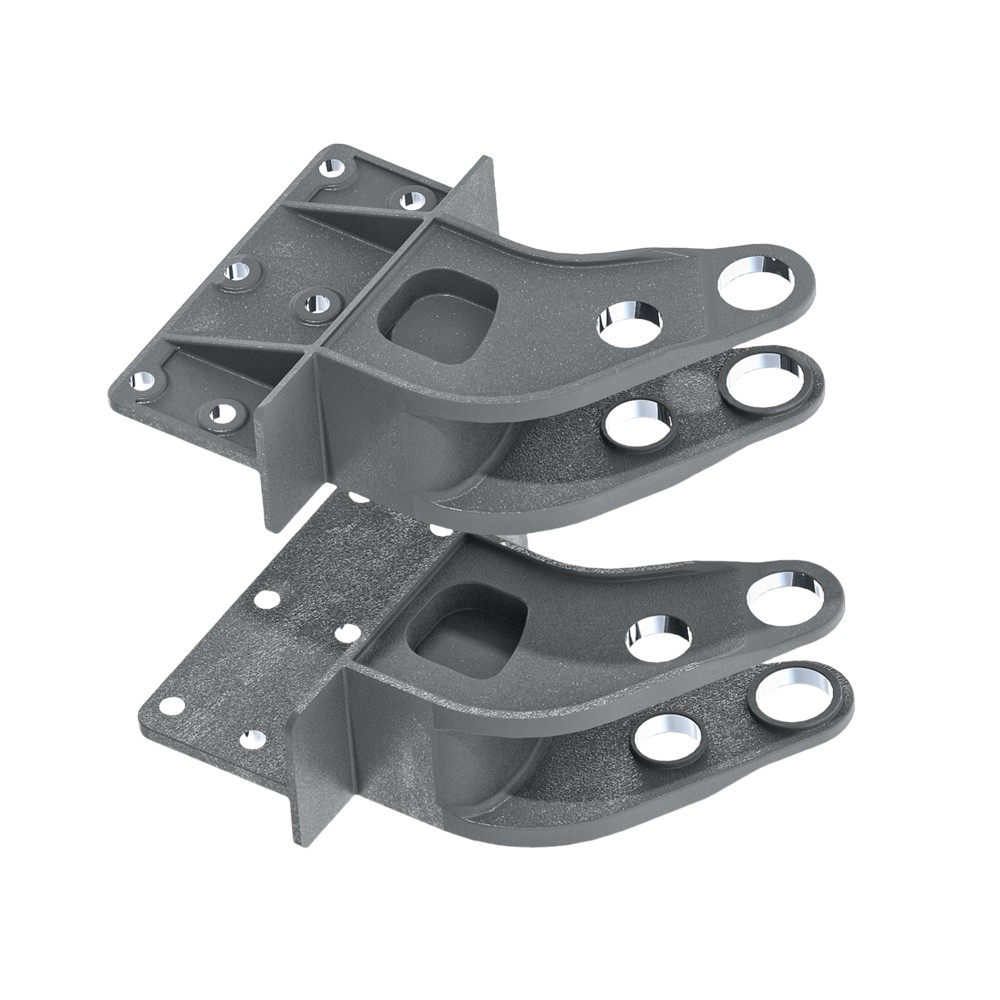

Custom Cast Trailer Front Hanger for Heavy-Duty Suspension Parts

High-performance Cast Trailer Front Hanger made from premium alloy steel, engineered for durability and precision. Manufactured using precision casting + CNC machining for tight tolerances, with multiple heat treatment and surface finish options to meet strict industry demands. Ideal for automotive, heavy machinery, and industrial applications.

Our cast trailer front hangers are engineered for high-payload and severe working environments. Compared to traditional stamped steel, cast hangers provide a more uniform distribution of structural stress, effectively absorbing and dispersing impact forces from the road. Rigorously tested for structural integrity, our products resist deformation and cracking under long-distance, heavy-duty transit, making them the most reliable connection between the axle and the frame.

1. Cast Trailer Front Hanger Features

1.1 Ultra-High Strength & Durability:

Integrally formed from high-quality cast steel (e.g., ZG270-500/ASTM A27), offering superior tensile strength and load-bearing capacity.

1.2 Precision Dimensions:

Pin holes and mounting surfaces are precision-machined via CNC equipment, ensuring perfect assembly with suspension pins, bushings, and the chassis, thereby minimizing wear.

1.3 Excellent Fatigue Resistance:

Scientifically heat-treated (quenched and tempered) to enhance overall mechanical properties and extend service life.

1.4 Anti-Corrosion Coating:

Surfaces are shot-blasted and can be finished with anti-rust primer, powder coating, or hot-dip galvanizing according to customer requirements to withstand extreme climates.

2. Manufacturing Process

2.1 Precision Casting:

Utilizing coated sand casting or investment casting processes to ensure a dense internal structure without defects like sand inclusions or blowholes.

2.2 Heat Treatment:

Normalizing or quenching/tempering the rough blanks to eliminate internal casting stress, refine the grain structure, and improve material toughness.

2.3 CNC Machining:

Utilizing high-precision CNC centers for drilling and boring mounting holes and spring connection holes to guarantee concentricity and tight dimensional tolerances.

2.4 Surface Treatment & QC:

Shot blasting followed by painting. Pre-shipment quality control includes Magnetic Particle Testing (MT), CMM dimensional checks, and tensile load testing.

3. Applications

The Cast Front Hanger is widely used in the mechanical suspension systems of various heavy-duty commercial vehicles, including:

• Flatbed Trailers
• Lowbed / Lowboy Trailers
• Dump Trailers / Tippers
• Skeleton / Container Trailers
• Specialized Heavy Transport Vehicles

4. Matching Parts

To ensure optimal performance of the suspension system, the front hanger typically operates in conjunction with the following components:

Leaf Springs:	The primary shock-absorbing components.
Suspension Pins & Bushings:	Used to connect the front hanger to the leaf spring; usually made of bi-metal or polyurethane to reduce friction.
Torque Rods / Radius Arms:	Maintain axle alignment and prevent shifting.
U-Bolts:	Used to clamp the leaf springs securely to the axle.



5. B2B Purchasing Considerations

5.1 Material & Load Matching:

Always verify the cast steel grade used by the supplier. Suspension systems for different capacities (e.g., 13-ton, 16-ton, 20-ton axles) require hangers with specific wall thicknesses and material strengths.

5.2 Dimensional Compatibility:

Pay strict attention to the leaf spring width (e.g., 75mm, 90mm, 100mm) and the pin hole diameter (e.g., Ф50, Ф60) to ensure full compatibility with your existing suspension setups.

5.3 Supplier’s QC Capabilities:

Inquire whether the factory holds ISO 9001 or IATF 16949 certifications. Request material physical/chemical analysis reports and flaw detection (NDT) reports to avoid purchasing inferior parts with internal casting defects.

5.4 OEM & Tooling Capacity:

If you require parts for specialized vehicle models or specific aftermarket regions, ensure the manufacturer has strong reverse engineering and mold development capabilities.

5.5 Quality Assurance:

1. 100% Dimensional Inspection (CMM)
2. Material Test Reports Provided
3. Heat Treatment Certificates Available

6. FAQ

Q: Can you provide customized heat treatment?
A: Yes! We offer tailored heat treatment (quenching, tempering, etc.) based on your requirements.

Q: What’s the MOQ?
A: Sample orders accepted (1-5 pcs), bulk orders enjoy discounts.

Q: Do you support OEM/ODM?
A: Yes, we provide custom design and branding services.
