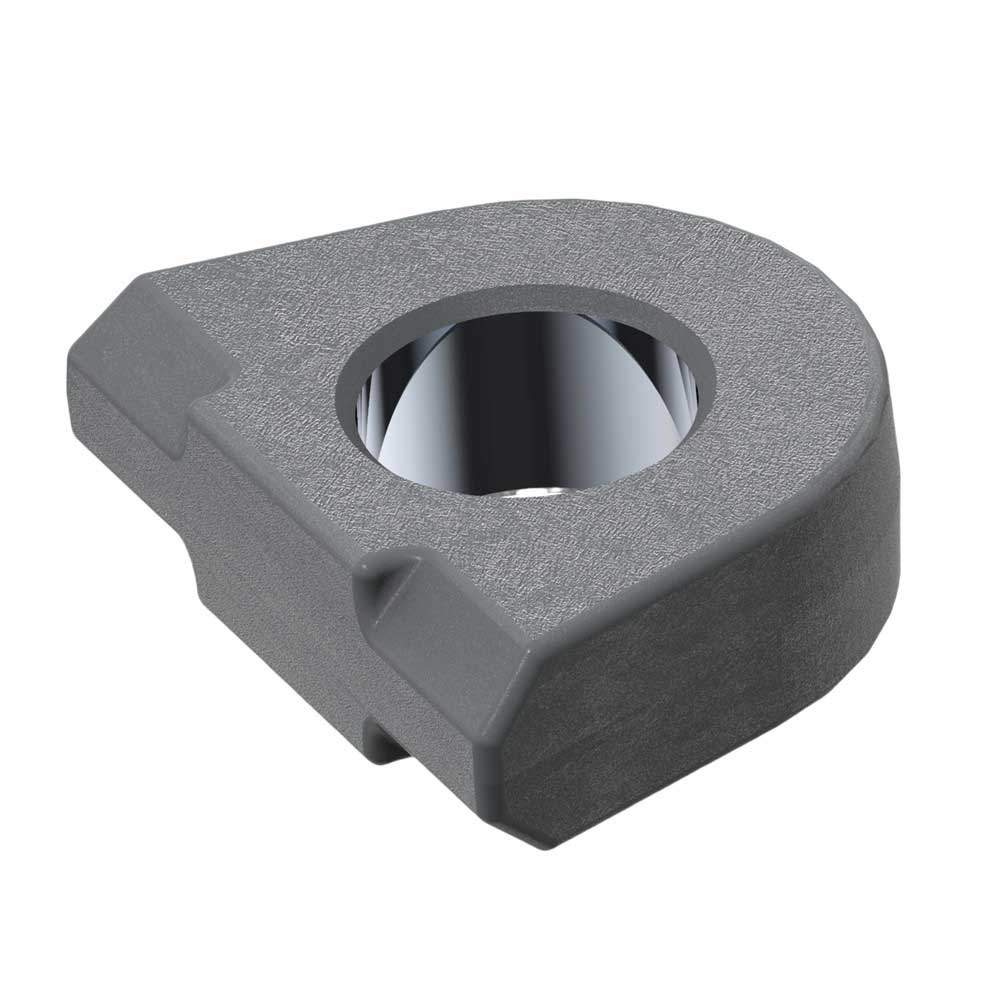

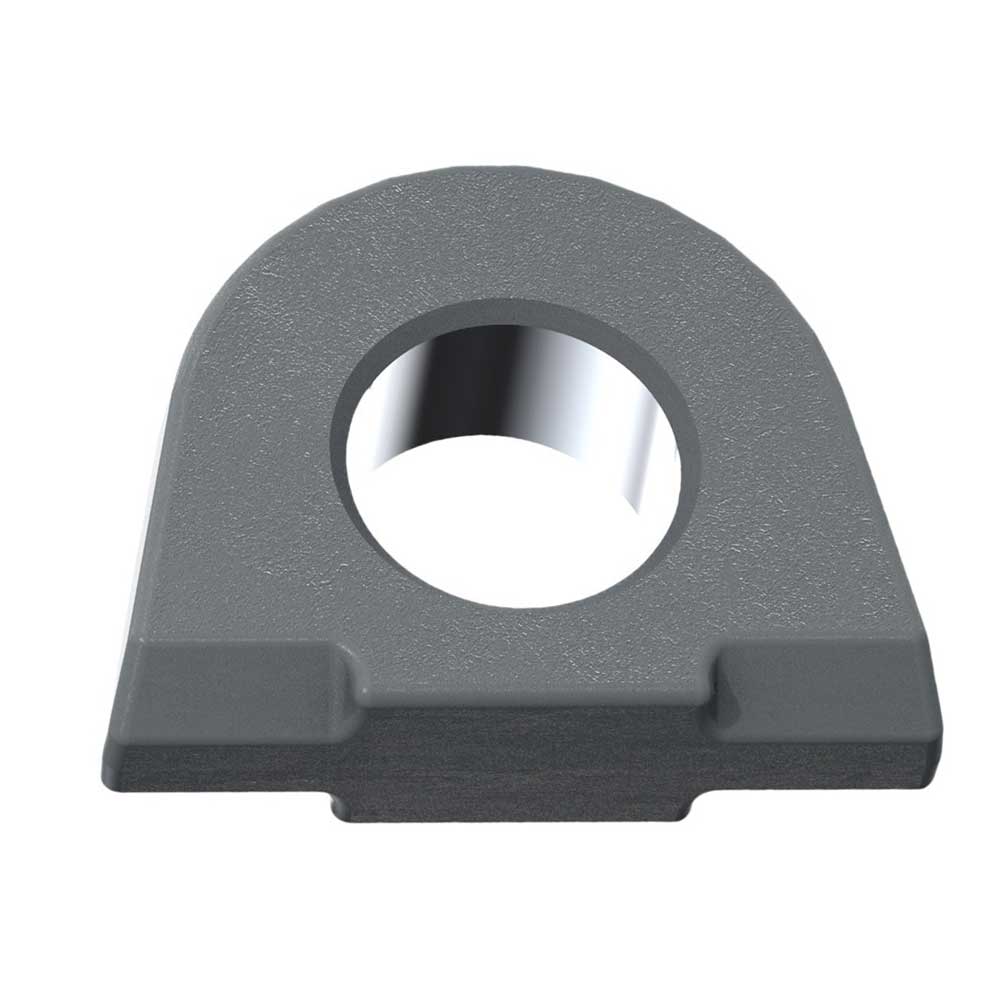

Supply Forged Steel Upper Mounting Brackets

1. Product Introduction

The Forged Steel Upper Mounting Brackets are specifically engineered for heavy-duty commercial vehicle chassis and suspension systems.

Technical Specifications

2. Product Features

• 1. Superior Mechanical Integrity: Forged from premium alloy steel, which optimizes the internal grain flow and eliminates internal voids, yielding impact resistance far superior to standard castings.
• 2. Micro-Precision Machining: Processed via advanced CNC machining centers to maintain tight tolerances on mounting holes and mating surfaces, ensuring flawless vehicle assembly alignment.
• 3. Heavy-Duty Corrosion Protection: Finished with high-grade E-coating, powder coating, or hot-dip galvanization, exceeding 500 hours of salt spray testing to withstand harsh environments.
• 4. OEM-Grade Safety Margins: Optimized via Finite Element Analysis (FEA) for severe-duty applications, providing safety margins that consistently exceed industry benchmarks.

3. Manufacturing Process

• Material Inspection & Cutting: High-quality carbon or alloy steel bars (e.g., AISI 1045, 4140) are verified and cut to precise billet sizes.
• Induction Heating: Billet temperatures are strictly monitored during medium-frequency induction heating to prevent surface decarburization.
• Closed-Die Forging: Heavy tonnage forging presses shape the bracket in precise dies, creating an unbroken crystalline grain flow.
• Heat Treatment: Quenching & Tempering (Q&T) or Normalizing is applied to achieve the ideal balance of high tensile strength and ductility.
• Precision CNC Machining: Multi-axis machining centers precision-mill mating faces and drill bolt holes.
• NDT & Surface Finishing: Magnetic Particle Inspection (MPI) ensures zero surface cracks before applying the protective topcoat.

4. Applications of Forged Steel Upper Mounting Brackets

• 1. Commercial Suspension Systems: Upper leaf spring brackets and shock absorber mounts for heavy trucks, semi-trailers, and buses.
• 2. Chassis & Steering Links: Attachment points for steering axles, drive axles, and driveline suspensions.
• 3. Coupling & Hitch Assemblies: Reinforced mounting platforms for fifth wheels and heavy-duty towing hitches.

5. Matching Parts Information

To support your seamless assembly line operation, Truecasteng offers perfectly matched accessories:

• 1. High-Tensile Fasteners: Grade 10.9 or 12.9 specialized mounting bolts and flange locking nuts.
• 2. Anti-Vibration Bushings: Heavy-duty polyurethane or high-elasticity rubber dampening bushings.
• 3. Heavy-Duty U-Bolts: Companion U-bolts custom-sized to match the mounting bracket configurations.

6. Procurement Guidelines

• 1. Blueprint and Tolerance Alignment: Due to the extensive machining required on forgings, please re-verify 2D/3D drawings to align critical geometric tolerances prior to production.
• 2. Load Dynamics Disclosure: Provide details regarding your vehicle’s Gross Vehicle Weight Rating (GVWR) and operating terrain so our team can optimize the heat-treatment recipe.
• 3. Tooling Transparency: Custom forgings require dedicated die sets. Truecasteng offers transparent tooling quotes with a full refund clause once order volumes hit agreed milestones.
• 4. PPAP Protocol: For Tier-1 and OEM clients, we fully support the PPAP (Production Part Approval Process) level 3 submission, including initial sample inspection reports.

7. Industry & Buyer FAQs

Q1: Why choose forged mounting brackets over cast iron ones for suspension systems?
A: Suspension components bear severe cyclic loading and road impacts. Castings are prone to internal porosity and shrinkage defects. Forging compresses the metal structure and aligns the grain flow, drastically increasing fatigue life and impact resistance, eliminating catastrophic failures in the field.

Q2: Does Truecasteng support manufacturing based on OEM numbers or physical samples?
A: Yes. Our engineering department specializes in reverse engineering. You can provide standard OEM cross-references, physical components, or CAD files, and we will handle tooling design and production.

Q3: What is your typical lead time for mass production orders?
A: For new projects, tooling development and initial sampling take 10to 30 days. Once samples are approved, standard mass production lead time is typically around 7-15 days.

Q4: Can you match our existing bracket design?
A: Yes – Send your sample or CAD file for DFM analysis within 48hrs.

Q5: What’s your capacity for bulk orders?
A: 50,000+ units/month with 5% volume discount beyond 2,000pcs.

Q6: Do you provide salt spray test reports?
A: Standard 500hr ASTM B117 reports included – 1,000hr available on request.
