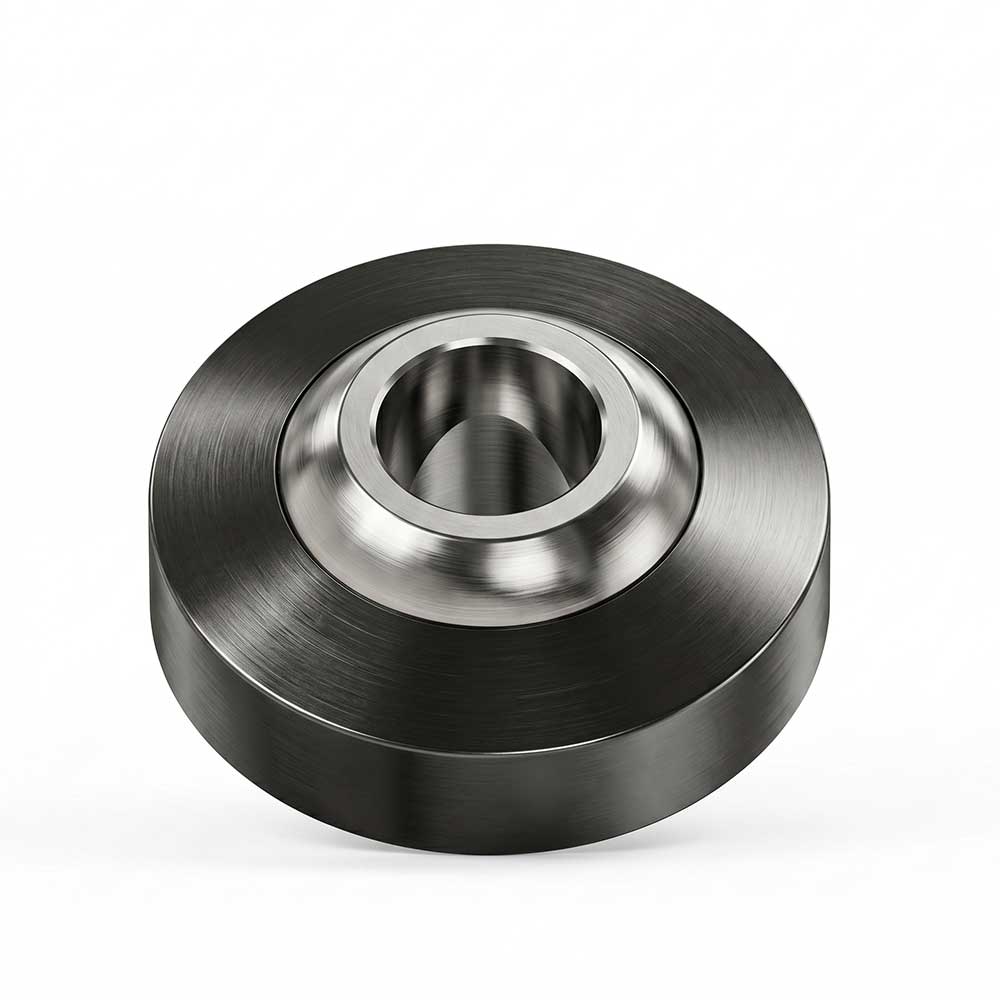

Wholesale Premium Joint Bearings for Heavy-Duty Trailer

1. Joint Bearings Introduction

1.1. Material & Metallurgy

Base Material:

The Joint Bearing is manufactured from high-quality alloy steel 42CrMo (AISI 4140) is selected. This material offers exceptional hardenability, impact toughness, and fatigue strength, serving as a robust foundation for high-impact applications in sectors such as agriculture and heavy-duty trucking.

Hardness Specifications:

Customized heat treatment is applied (outer ring: 58–62 HRC / inner ring: 56–60 HRC). The high-hardness working surfaces effectively prevent plastic deformation and fretting wear under heavy loads.

1.2. Precision & Surface

Surface Roughness:

The spherical surface undergoes precision grinding to achieve Ra ≤ 0.4 µm, minimizing the friction coefficient during spherical contact between the inner and outer rings to ensure smooth steering and oscillation.

Dimensional Tolerance Control:

Strict negative tolerance design is employed (e.g., a 25 mm bore diameter with a +0 / -0.010 mm tolerance). Combined with standard radial internal clearance (0.080 to 0.140 mm), this ensures highly uniform stress distribution under load.

1.3. Protection & Lubrication

Surface Anti-corrosion:

Manganese phosphating combined with anti-rust oil is used as the standard finish. This creates an oil-absorbing layer on the microscopic surface, significantly enhancing initial break-in performance and corrosion resistance.

Sealing & Lubrication:

Integrated lubrication grooves and oil holes are featured on both the inner and outer rings. These work in conjunction with double-lip polyurethane dust seals to retain extreme-pressure (EP) lithium-based grease while effectively blocking external contaminants such as mud and debris.

2. Joint Bearings Key Features

• 1. High Load Capacity: Optimized internal geometry distributes stress evenly, allowing the bearing to withstand severe radial and axial loads.
• 2. Smooth Articulation: Precision-engineered contact surfaces minimize friction, ensuring fluid angular alignment and oscillation.
• 3. Enhanced Durability: Made from premium alloy steel, these bearings resist premature fatigue, galling, and wear under harsh operational cycles.
• 4. Tailored Performance: Scalable options for specialized heat treatment (e.g., case hardening) and advanced surface finishes to resist corrosion and harsh chemical exposure.

3. Manufacturing & Craftsmanship

• Precision Casting: Foundational blanks are cast using Truecasteng’s decades-refined precision molding techniques to ensure uniform material density and eliminate internal defects.
• CNC Machining: Critical dimensions and spherical profiles are finalized via precision CNC machining to guarantee exceptionally tight tolerances.
• Thermal & Surface Treatment: Customizable metallurgical treatments enhance core toughness and surface hardness, supplemented by protective coatings optimized for specific deployment environments.

4. Target Applications

Serving heavy-duty global industries since 1994, our joint bearings are integral to:

• Agricultural Machinery: Linkage systems, steering hinges, and chassis pivots for tractors and harvesters.
• Truck & Transport Components : Heavy-duty suspension systems, steering assemblies, and fifth-wheel couplings.
• Industrial Machinery: Hydraulic cylinder ends, linkage mechanisms, and heavy pivoting arms in construction or manufacturing equipment.

5. Mating & Accessory Information

To ensure seamless integration and maximum service life, Truecasteng supplies or recommends the following compatible mating components:

• 1. High-Tensile Pins & Shafts: Precision-ground pins matching the bearing’s inner diameter tolerance to prevent localized wear.
• 2. Seals & Dust Boots: Elastomeric or metallic seals to retain lubrication and block ingress of abrasive dirt, mud, and water.
• 3. Retaining Rings & Housings : Custom-machined retaining rings and heavy-duty housing blocks engineered to lock the outer ring securely against axial displacement.

6. Procurement Notes & Buyer Guidance

When sourcing joint bearings for global trade, technical alignment is critical. Ensure you address the following variables before finalizing your order:

• 1. Load & Speed Profiles: Define the exact dynamic/static load requirements and angular velocity to choose the correct alloy grade and clearance.
• 2. Environmental Factors: Specify if the application involves high moisture, corrosive chemicals, or extreme temperatures so we can apply the correct surface plating and lubrication strategy.
• 3. Tolerance & Fit Standards: Clarify your preferred measurement system (Metric vs. Imperial) and shaft/housing fit classes to avoid assembly interference.
• 4. MOQ & Customization Lead Times: Review production lead times for custom heat-treating sequences. Truecasteng accommodates scalable production batches tailored to global supply chains.
