Tooth Bar for Tractor Bucket : Installation and Maintenance Guide

1. Tooth Bar for Tractor Bucket

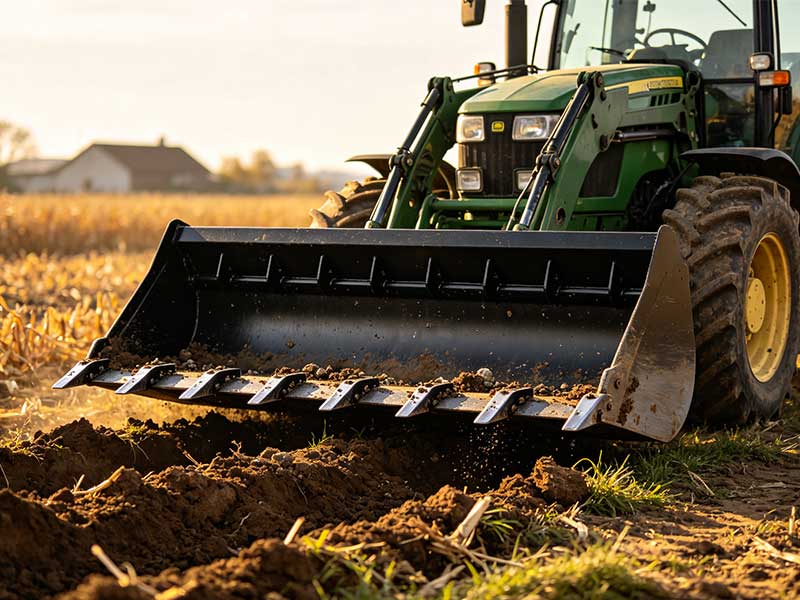

A tooth bar for tractor bucket is a heavy-duty bolt-on attachment engineered to upgrade standard tractor and skid steer loader buckets. Also known as a piranha tooth bar, it consists of a high-strength steel main beam and replaceable digging teeth, serving as a cost-effective retrofit solution to boost digging performance without replacing the entire bucket.

Professional tooth bar manufacturing and precision tooth bar casting processes determine the overall durability, load capacity, and service life of the product. Premium tooth bars adopt integrated beam welding and high-precision casting tooth technology, which effectively solves the problems of weak penetration and easy wear of ordinary smooth-edge buckets.

Widely used in agriculture, landscaping, farm renovation, and light construction, it has become an essential accessory for compact and medium tractor loaders.

2. Core Benefits & Working Principle

Upgrading your bucket with a manufactured and cast tooth bar brings unparalleled operational advantages for all digging and land-clearing tasks:

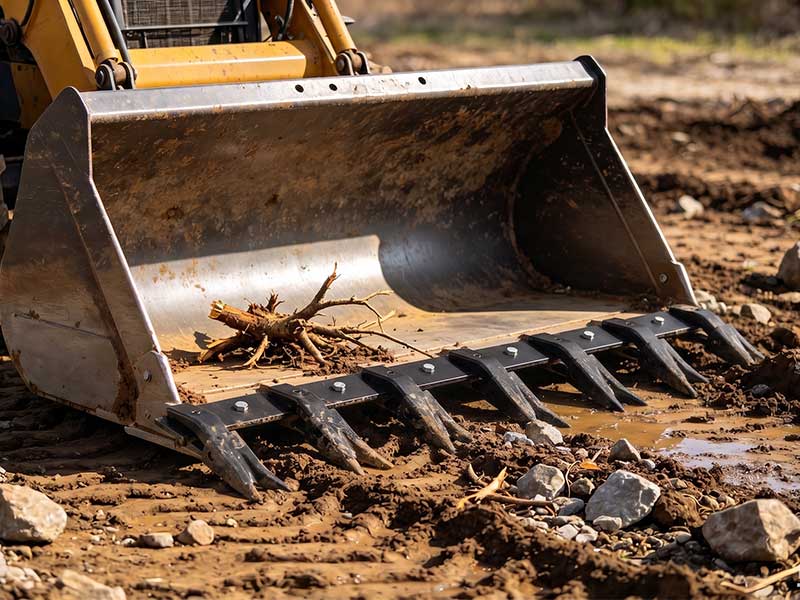

• – Superior Soil Penetration: Hardened cast teeth break through compacted soil, frozen ground, rocks, and tree roots effortlessly, reducing digging resistance by over 40% compared with plain bucket edges.
• – Bucket Full Protection: All impact force is borne by the tooth bar instead of the original bucket blade, avoiding edge curling, abrasion, and deformation, greatly extending the bucket’s service life.
• – Efficient Material Screening: Reasonable tooth spacing allows mud and fine sand to leak out while retaining stones, roots, and construction waste, optimizing sorting and cleaning efficiency.
• – Strong Load Stability: Standard manufactured tooth bars feature uniform force distribution design, supporting a maximum load of 4560 lbs for stable heavy-duty operation.
• – Low Operation Cost: Independent replaceable cast teeth eliminate the need for whole-set replacement, significantly reducing later maintenance costs.

3. Professional Manufacturing & Casting Technology

The performance gap of different tooth bars mainly comes from tooth bar manufacturing standards and tooth bar casting precision. Reliable manufacturers strictly follow industrial-grade production processes to ensure product toughness and wear resistance.

– Main Beam Manufacturing:

• Adopts Q345 low-alloy high-strength steel, with automatic seamless welding technology.
• The overall beam structure avoids stress concentration.
• The surface is treated with anti-rust and wear-resistant powder coating to resist outdoor wind, rain and corrosion.

– Tooth Casting Process:

• Heavy-duty teeth use high-manganese steel integral casting and heat treatment process, with high surface hardness and strong impact resistance, not easy to crack or collapse.
• General-purpose teeth adopt thickened cast steel molding, with standard 230-type curved tooth shanks to optimize digging angles and prevent mud sticking.

– Precision Machining:

All mounting holes and clamp positions are precisely cut and calibrated to ensure tight fit and no deviation after installation.

4. Tooth Bar Standard Specifications (Size & Fit Guide)

We provide standardized manufactured tooth bars for sub-compact, compact, and medium tractors.

The following table covers mainstream models for easy selection:

Fit Reminder: All tooth bars fit bucket cutting edges ≤ 1/2 inch thickness. Please match the tooth bar length according to the inner width of your tractor bucket for the best installation and force-bearing effect.

5. Step-by-Step Tooth Bar Installation Guide (Bolt-On No-Weld Design)

All our manufactured tooth bars adopt universal clamp-on bolt-on design, no welding, no drilling required, easy DIY installation within 10 minutes. Follow the standardized steps below for stable installation:

Step 1. Pre-install Preparation:

Park the tractor on flat ground, turn off the engine, put down the bucket completely, and clean all mud, rust and debris on the bucket front edge to ensure a flat fitting surface. Prepare sleeve wrenches, rubber hammers and complete accessories (main beam, clamps, bolts, gaskets, nuts).

Step 2. Position the Main Beam:

Place the tooth bar main beam closely against the outer edge of the bucket blade, center it left and right to keep uniform gaps on both sides, and tap gently with a rubber hammer for full fitting without gaps.

Step 3. Install Clamps & Bolts:

Fasten U-shaped clamps from the bottom of the bucket, penetrate bolts from bottom to top, and install flat gaskets, spring gaskets and nuts in sequence. Short bars are equipped with 2 sets of clamps, and long bars with 3–4 sets for reinforced fixing.

Step 4. Symmetrical Pre-tightening:

Tighten all nuts by hand first, then tighten them in the order of middle first, then both ends, cross-tighten symmetrically to avoid offset or beam deformation.

Step 5. Final Torque Locking:

Tighten the nuts in 2–3 rounds with a standard torque of 80–100N·m. Shake the tooth bar manually to confirm no displacement or looseness.

Step 6. Test & Recheck:

Lift and lower the bucket idly several times, then conduct a 5-minute trial digging. Recheck all bolt tightness to ensure zero looseness before formal operation.

6. Professional Tooth Bar Maintenance & Care Guide

Scientific maintenance can maximize the service life of cast and manufactured tooth bars, maintain stable digging performance, and reduce replacement costs. We summarize daily, weekly and long-term storage maintenance standards in the table below:

7. Final Thoughts

A high-quality tooth bar for tractor bucket is a high-return, low-cost upgrade for tractor loader owners. Strict tooth bar manufacturing standards and precise tooth bar casting technology ensure outstanding durability and digging performance.

Truecasteng is a reliable precision casting manufacturer focusing on agricultural, truck and industrial machinery casting components. We offer custom wholesale Tooth Bar for Tractor Bucket with complete in-house manufacturing and precision casting technology, supporting OEM size customization and large-volume supply for global machinery buyers.
