X156 Bucket Tooth: Manufacturing, Maintenance & Application Guide

As a core excavator bucket tooth in the Hensley-style wear parts series, the X156 bucket tooth is widely recognized in the construction and mining industry for its high hardness, strong impact resistance and excellent digging penetration. It serves as a critical consumable and wear part for mini excavators and skid steers, favored by global contractors, equipment maintenance teams, and wear part suppliers.

This article elaborates on the X156 bucket tooth’s manufacturing process, material specifications, supporting components, application scenarios, daily maintenance, and performance improvement strategies.

1. Basic Specification, Material and Weight of X156 Bucket Tooth

The overall performance of the X156 bucket tooth is determined by its high-quality material formula and precise dimensional design. Adopting high-spec alloy steel as the core material, it abandons ordinary carbon steel with poor wear resistance and toughness, achieving a perfect balance between hardness and impact resistance.

The material undergoes multiple heat treatments to enhance surface wear resistance and internal toughness, effectively avoiding fracture and rapid wear during high-intensity operation.

The anti-rust powder coating on the surface further improves corrosion resistance and extends the service life in harsh working environments.

The following table shows the core parameter specifications of the standard X156 bucket tooth, covering material, weight, dimensional and performance indicators:

2. Professional Manufacturing Process of X156 Bucket Tooth

Regular bucket tooth manufacturer adopts mature lost wax investment casting technology to produce X156 bucket teeth, which ensures high dimensional accuracy, dense internal structure and stable mechanical properties, completely different from ordinary sand-cast low-quality products.

The whole manufacturing process is strictly controlled layer by layer to eliminate trachoma, cracks and internal porosity, guaranteeing the durability of wear parts in long-term engineering operations.

Step 1: Precision Mold Making.

According to standard drawings and customer custom requirements, high-precision metal molds are manufactured to ensure consistent product size and tight assembly tolerance. The mold design optimizes the tooth tip penetration angle and tooth body stress structure to improve digging efficiency and load-bearing capacity.

Step 2: Lost Wax Casting Forming.

Use high-purity wax to make tooth blanks, assemble and coat refractory coating, then melt and drain the wax at high temperature to form a hollow mold cavity. Pour molten high-strength alloy steel into the cavity, and cool and shape it naturally. This process makes the tooth body structure compact and effectively improves overall wear resistance.

Step 3: Multi-stage Heat Treatment.

Conduct quenching and tempering composite heat treatment on the formed X156 bucket tooth. The tooth tip is strengthened to form a high-hardness wear-resistant layer, while the tooth body maintains high toughness, preventing brittle fracture under strong impact.

Step 4: Polishing and Surface Treatment.

Remove burrs, sharp edges and casting residues through fine polishing, then spray anti-rust and wear-resistant powder coating on the surface to enhance corrosion resistance and surface finish.

Step 5: Quality Inspection and Finishing.

Strictly test product size, hardness, impact resistance and surface quality one by one. Qualified products are packaged and stored, supporting batch wholesale and customized delivery for wear part suppliers.

3. Supporting Components of X156 Bucket Tooth

The X156 bucket tooth cannot work independently and needs to be matched with complete supporting accessories to ensure stable installation and safe operation.

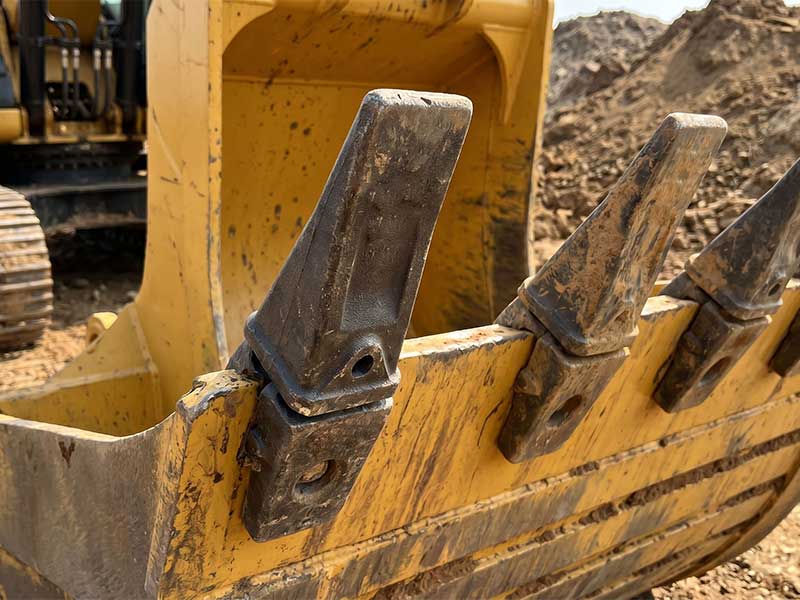

The complete supporting assembly is composed of tooth adapter, fixing pin, spring roll pin and limit gasket, forming a locked installation structure. The tooth adapter is fixed on the excavator bucket, which is the base for installing the X156 bucket tooth, bearing the main digging load. The matched 156LPN special pin and spring roll pin can tightly fix the bucket tooth on the adapter, avoiding tooth loosening or falling off during high-frequency vibration and impact operation.

All supporting accessories are made of high-strength wear-resistant steel, with consistent quality matching the X156 bucket tooth, ensuring the overall coordination and durability of the equipment. Meanwhile, we provide OEM matching accessory services to meet the supporting needs of different brand equipment.

4. Application Scenarios of X156 Bucket Tooth

As a versatile excavator bucket tooth, the X156 bucket tooth is widely used in small and medium-scale engineering scenarios, with strong adaptability to complex working conditions. It is the preferred wear part for mini excavators and skid steers.

• In civil engineering, it is suitable for foundation trenching, soil excavation, garden greening transformation and road surface leveling.
• In mining and quarrying operations, it can penetrate hard soil, frozen ground and broken rock layers, realizing efficient digging and loading.
• In demolition and renovation projects, it can handle broken concrete and loose gravel.
• In farmland renovation and water conservancy projects, it adapts to muddy and complex terrain operations.

Thanks to its lightweight, high-strength and easy replacement characteristics, it greatly reduces equipment maintenance downtime and engineering cost, winning wide recognition from engineering teams and wear part suppliers.

5. Daily Maintenance and Maintenance Methods

Scientific daily maintenance can effectively prolong the service life of X156 bucket tooth, reduce the replacement frequency of wear parts, and save engineering operation costs. The standardized maintenance steps are as follows:

5.1 Regular Cleaning.

After daily operation, clean the soil, gravel and concrete residues on the surface and gap of the bucket tooth to avoid long-term adhesion of hard impurities causing local stress concentration and accelerated wear.

5.2 Regular Inspection.

Check the tooth tip wear degree, tooth body for cracks, and whether the fixing pin is loose or missing before and after operation every day. If the tooth tip is severely worn and the penetration ability decreases, or the tooth body has micro-cracks, replace it in time to avoid equipment failure.

5.3 Timely Fastening.

The bucket tooth will vibrate violently during operation, which is easy to cause pin loosening. Regularly check and fasten the fixing pin and limit parts to ensure the tight fit between the bucket tooth and the adapter.

5.4 Anti-corrosion Protection.

For long-term idle equipment, clean and dry the X156 bucket tooth, and apply anti-rust oil or repair the surface coating to prevent oxidation and corrosion in humid environment.

5.5 Standard Replacement.

Follow the OEM matching standard when replacing, select regular qualified X156 bucket tooth, and avoid using inferior products with unqualified material and process to prevent safety hazards.

6. Effective Strategies to Improve X156 Bucket Tooth Performance

On the basis of standard products, the performance of X156 bucket tooth can be further optimized through material upgrading, structural optimization and use matching to adapt to higher-intensity working conditions:

6.1 Upgrade High-strength Customized Materials.

Choose custom high-hardness alloy steel enhanced version of X156 bucket tooth, increase surface hardness and impact toughness, and improve wear resistance for rock, frozen soil and other harsh working conditions.

6.2 Optimize Structural Design.

Adopt multi-tiger tooth structural optimization scheme (such as X156 TR3 triple tiger tooth model), improve the tooth tip penetration and bearing capacity, reduce digging resistance, and significantly improve operation efficiency.

6.3 Match Reasonable Operation Mode.

Avoid violent impact and forced prying operation, reduce abnormal loss of bucket tooth; adjust the digging angle according to different working conditions to make the tooth tip bear uniform force and reduce local excessive wear.

6.4 Regular Maintenance and Upgrading.

Establish a regular replacement cycle of wear parts, replace severely worn bucket teeth in advance, and avoid secondary damage caused by excessive wear; choose bulk wholesale high-quality products from professional bucket tooth manufacturer to ensure stable and consistent product performance.
